SKU: 6006-2RS/C3-CDX

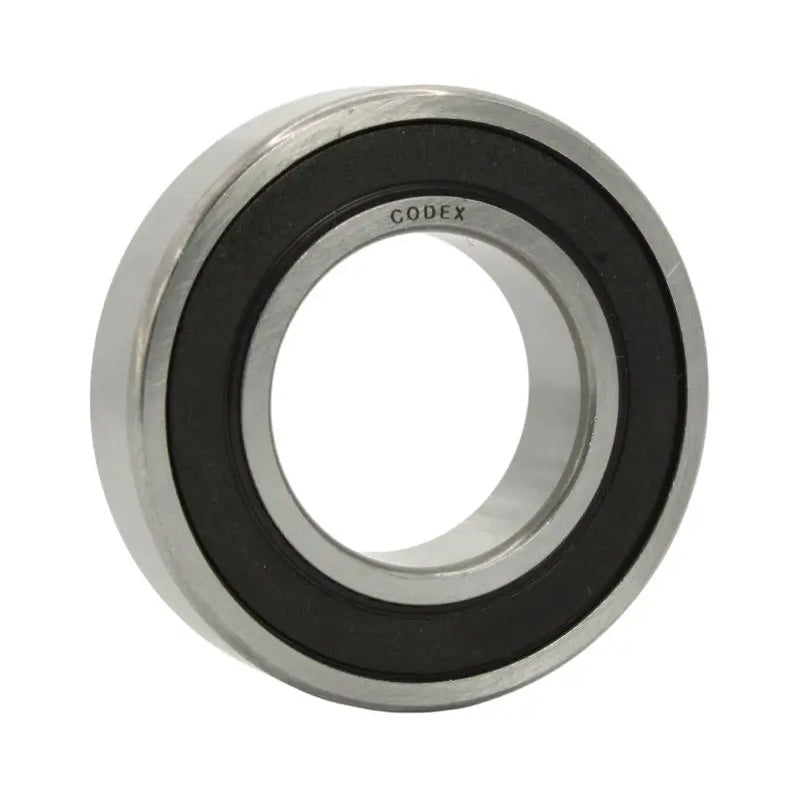

Codex 60062RSC3 Rubber Sealed Deep Groove Ball Bearing 30x55x13mm
Equivalent to: 60062RSC3 60062RSHC3 60062RS1C3 60062RSRC3 60062RSLC3 6006LFSC3 6006EEC3 6006DUC3 6006LLUC3 EL302RSC3 6006PPC3 9106PPC3 106KSZZC3 993L06C3 6106KKC3 10L30C3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 13mm |
| Dynamic load C | 13.8 kN |
| Static load Co | 8.3 kN |
| Fatigue load limit Pu | 0.355 |
| Reference speed | 28000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.12 kg |
| d1 | 38.2mm |
| D2 | 49mm |
| r1r2 | 1mm |
| da min | 34.6mm |
| Da max | 50.4mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 15 |
