SKU: 6006-2RS1/C4-SKF

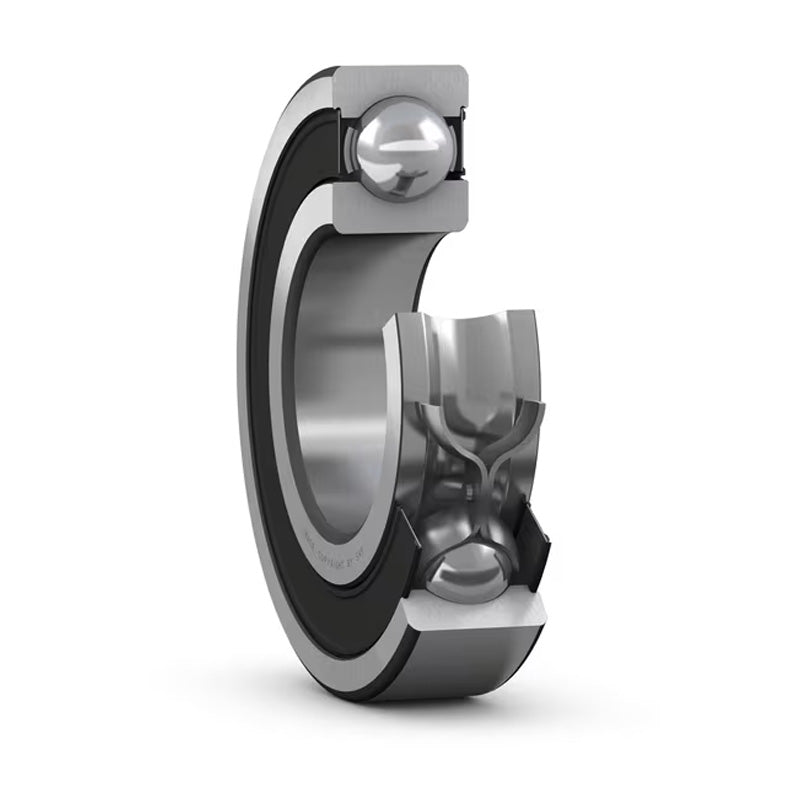

SKF 60062RS1C4 Rubber Sealed Deep Groove Ball Bearing 30x55x13mm
Equivalent to: 6006NSEC4 6006DUC4 6006RSC4 6006RSHC4 6006PC4 6006RSRC4 6006LUC4 60062NSEC4 6006DDUC4 60062RSC4 60062RSHC4 6006PPC4 60062RSRC4 6006LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C4
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 13mm |
| Dynamic load C | 13.8 kN |
| Static load Co | 8.3 kN |
| Fatigue load limit Pu | 0.355 kN |
| Reference speed | 28000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.12 kg |
| d1 | 38.2mm |
| D2 | 49mm |
| r1r2 min | 1mm |
| da min | 34.6mm |
| Da max | 50.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 15 |
