SKU: 6006-2Z-EU

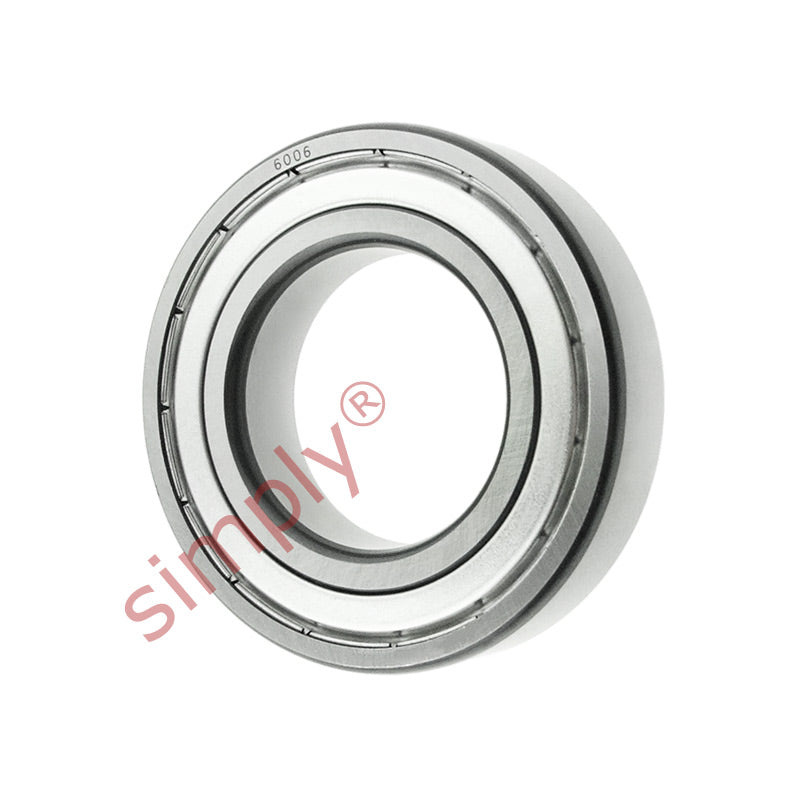

6006ZZ Budget Metal Shielded Deep Groove Ball Bearing 30x55x13mm
Equivalent to: 6006ZZ 60062Z 6006ZZ 60062ZR 6006ZZE 6006FF 6006DD 6006DDC 6006KDDC EL302Z EL30ZZ 9106KDD 9106FF 106KSFF 773L06 6106PP
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 13mm |
| r min | 1mm |
| Dynamic load Cr | 13.2 kN |
| Static load Cor | 8.25 kN |
| Speed in grease | 13000 rpm |
| Speed in oil | 15000 rpm |
