SKU: 6007-C3-NKE

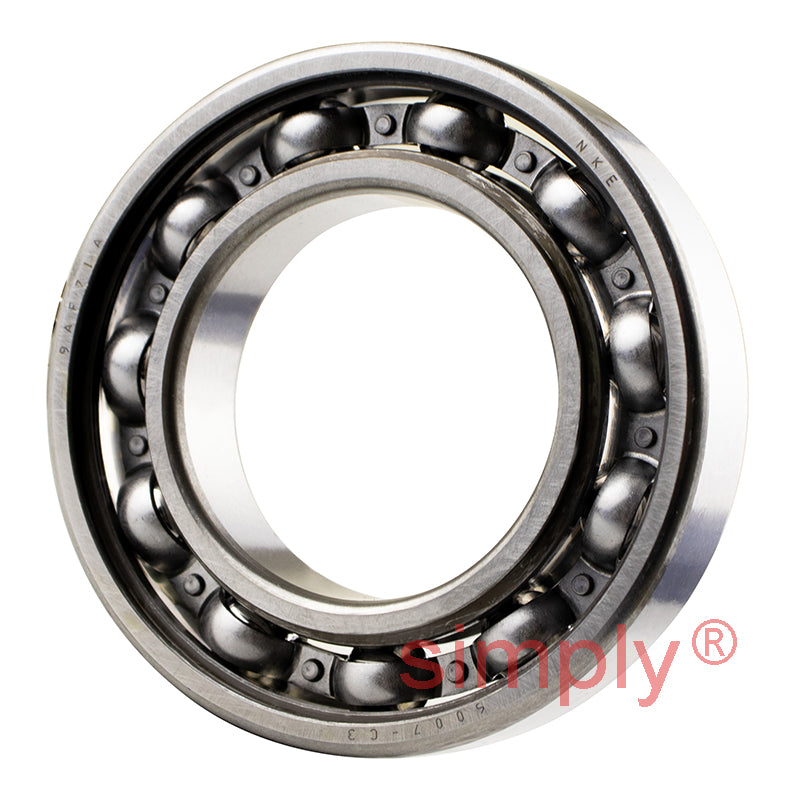

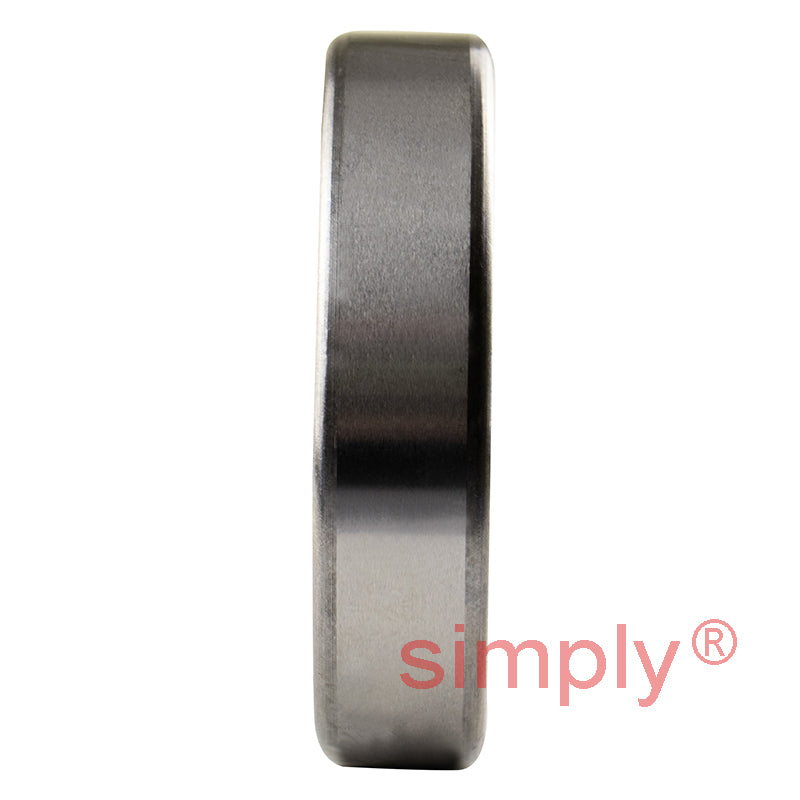

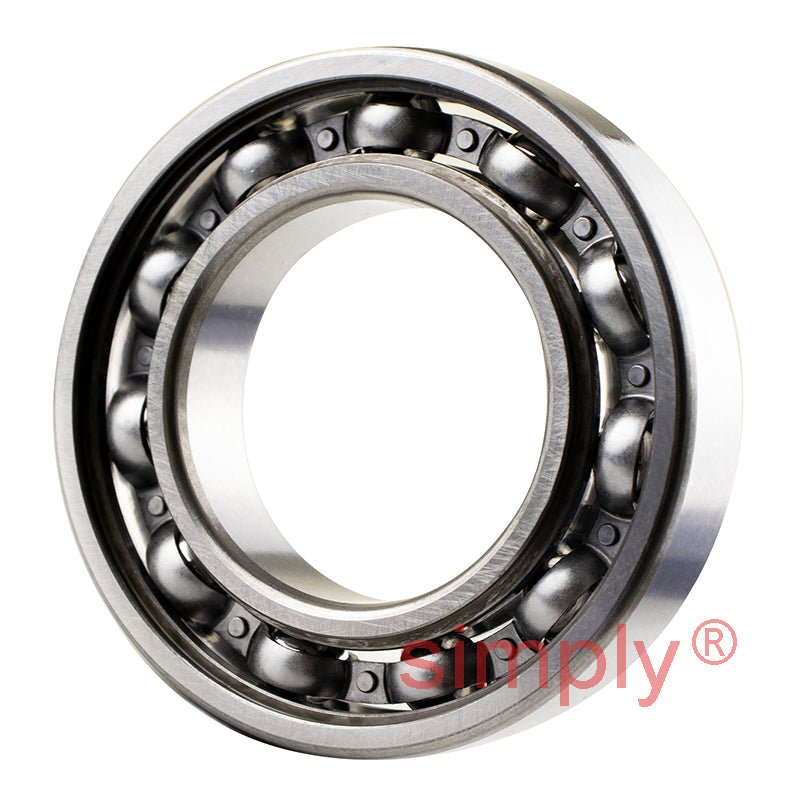

NKE 6007C3 Open Deep Groove Ball Bearing 35x62x14mm

NKE 6007C3 Open Deep Groove Ball Bearing 35x62x14mm
$9.55 ex VAT
$9.55 ex VAT
Sale Sold out

In stock

Price Break
4+ $6.40
10+ $6.04
20+ $5.96
30+ $5.89
50+ $5.82
75+ $5.75
100+ $5.39
200+ $5.32
250+ $5.25
500+ $5.17
1000+ $5.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
NKE - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
None
Clearance:
C3
Technical
d 35mm
D 62mm
B 14mm
Dynamic load 16.8 kN
Static load 10.2 kN
Fatigue load limit Pu 0.44 kN
Reference speed 24000 rpm
Limiting speed 15000 rpm
Weight 0.16 kg
d1 43.8mm
D1 53.3mm
D2 55.6mm
r1r2 min 1mm
da min 39.6mm
Da max 57.4mm
ra max 1mm
Calculation factor kr 0.025
Calculation factor Cor 15
