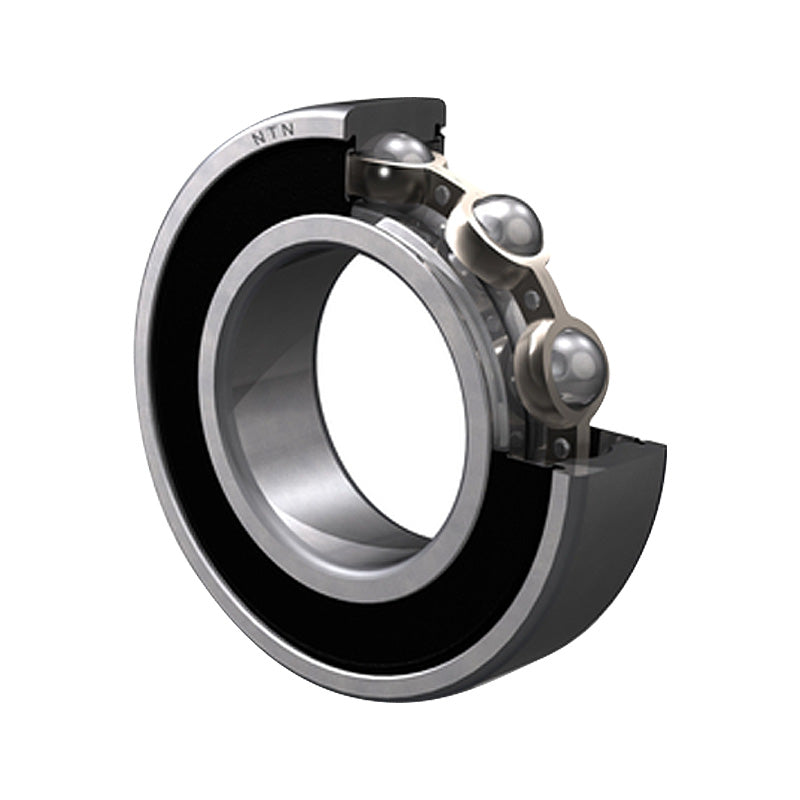

• NTN 6007LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 35x62x14mm
1 1

SKU: 6007LLB/5K-NTN

NTN 6007LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 35x62x14mm

NTN 6007LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 35x62x14mm
$21.88 ex VAT
$21.88 ex VAT
Sale Sold out

Equivalent to: 6007LLBCM 6007LLB 60072NKE 6007VV 60072RSL 60072RZ

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_NSDGB
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 17.7 kN
C<sub>or</sub> 10.3 kN
C<sub>u</sub> 0.805 kN
f<sub>0</sub> 14.8 kN
Grease 12000 rpm
Oil 14000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 40mm
d<sub>a</sub> Max. 42mm
D<sub>a</sub> Max. 57mm
r<sub>as</sub> Max. 1mm
Weight 0.155 kg
