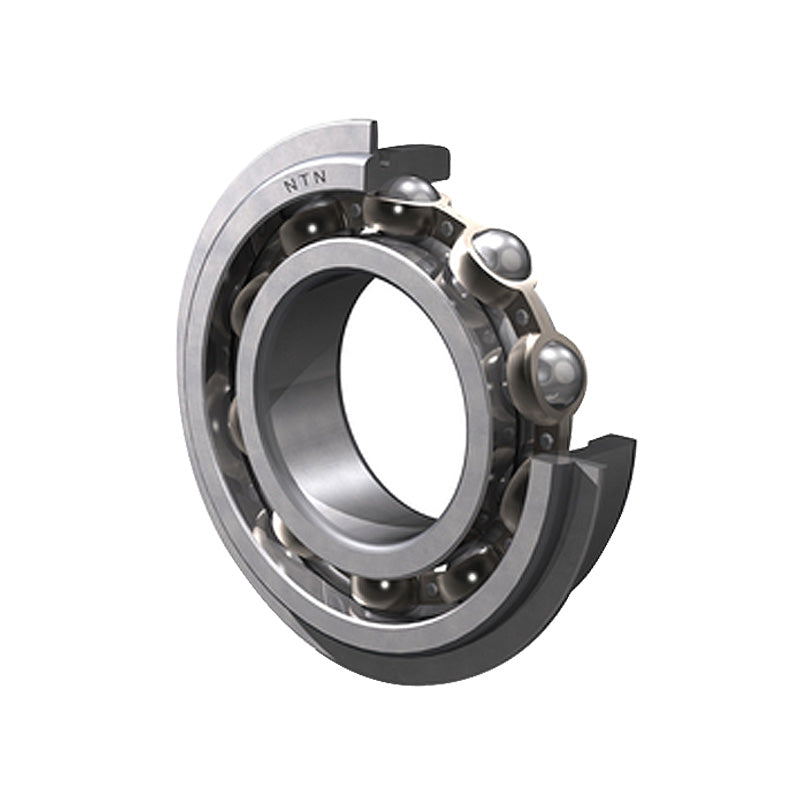

• NTN 6007NR Open Type Deep Groove Ball Bearing with Snap Ring 35x62x14mm
  • NTN
1 2

SKU: 6007NR-NTN

NTN 6007NR Open Type Deep Groove Ball Bearing with Snap Ring 35x62x14mm

NTN 6007NR Open Type Deep Groove Ball Bearing with Snap Ring 35x62x14mm
$20.22 ex VAT
$20.22 ex VAT
Sale Sold out

Equivalent to: 6007NRCM 9107KG 107KSG 43L07

In stock

Price Break
3+ $13.55
5+ $12.78
10+ $12.63
25+ $12.48
49+ $12.33
74+ $12.18
99+ $11.42
199+ $11.26
249+ $11.11
499+ $10.96
999+ $10.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>s</sub> min 1mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 17.7 kN
C<sub>or</sub> 10.3 kN
C<sub>u</sub> 0.805 kN
f<sub>0</sub> 14.8 kN
Grease 12000 rpm
Oil 14000 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 59.61mm
a Max. 2.08mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 67.7mm
f Max. 1.7mm
--- Fitting Dimensions
d<sub>a</sub> Min. 40mm
d<sub>a</sub> Max. 42mm
D<sub>a</sub> Max. 57mm
D<sub>X</sub> (approx) 68.5mm
C<sub>Y</sub> Max. 3.4mm
C<sub>Z</sub> Min. 1.7mm
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.155 kg
