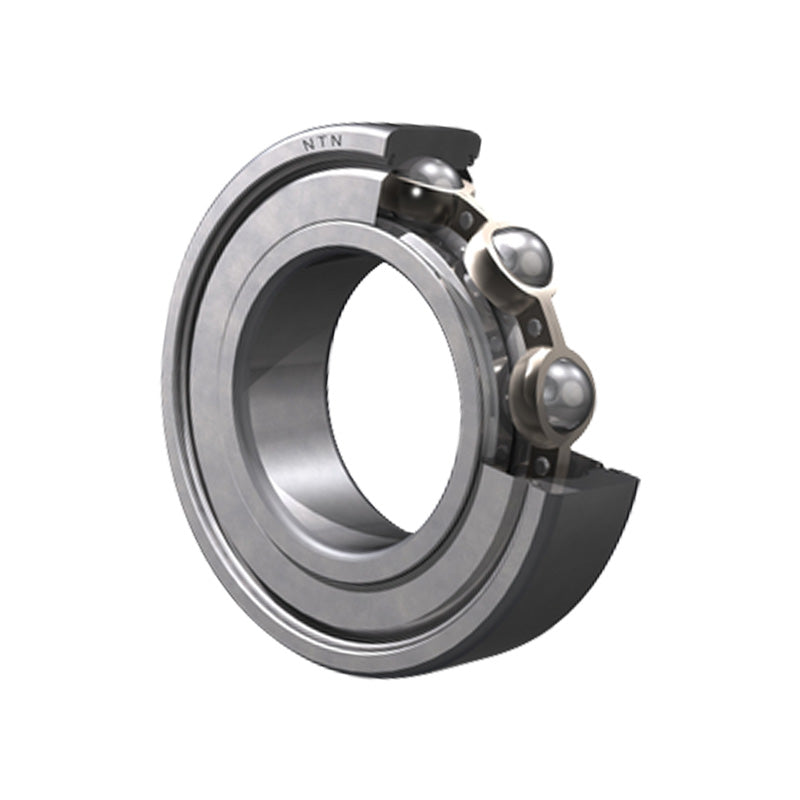

• NTN 6007ZZ/5K Metal Shielded Type Deep Groove Ball Bearing 35x62x14mm
  • NTN
1 2

SKU: 6007ZZ/5K-NTN

NTN 6007ZZ/5K Metal Shielded Type Deep Groove Ball Bearing 35x62x14mm

NTN 6007ZZ/5K Metal Shielded Type Deep Groove Ball Bearing 35x62x14mm
$15.12 ex VAT
$15.12 ex VAT
Sale Sold out

Equivalent to: 6007ZZCM 6007ZZ 6007ZZ 60072Z 6007ZZ 60072ZR 6007ZZE 6007FF 6007DD 6007DDC 6007KDDC EL352Z EL35ZZ 9107KDD 9107FF 107KSFF 773L07 6107PP

In stock

Price Break
3+ $10.13
5+ $9.56
10+ $9.45
25+ $9.33
49+ $9.22
74+ $9.10
99+ $8.54
199+ $8.42
249+ $8.31
499+ $8.19
999+ $7.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_ZDGB
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 17.7 kN
C<sub>or</sub> 10.3 kN
C<sub>u</sub> 0.805 kN
f<sub>0</sub> 14.8 kN
Grease 12000 rpm
Oil 14000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 40mm
d<sub>a</sub> Max. 42mm
D<sub>a</sub> Max. 57mm
r<sub>as</sub> Max. 1mm
Weight 0.155 kg
