• NTN 6007ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 35x62x14mm
  • NTN
1 2

SKU: 6007ZZC3/5K-NTN

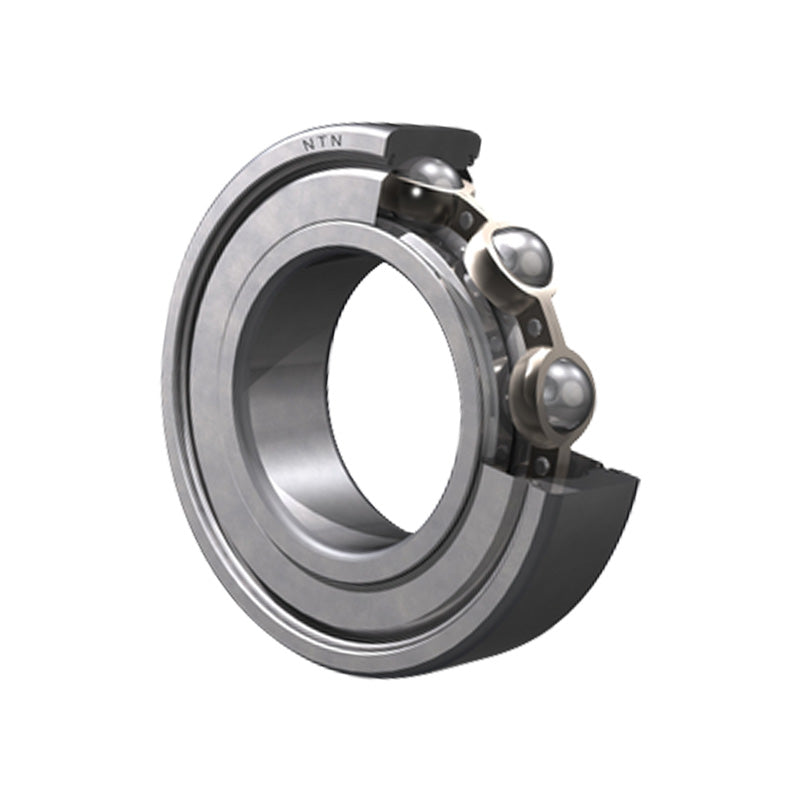

NTN 6007ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 35x62x14mm

NTN 6007ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 35x62x14mm
$17.38 ex VAT
$17.38 ex VAT
Sale Sold out

Equivalent to: 6007ZZC3 60072ZC3 6007ZZC3 60072ZRC3 6007ZZEC3 6007FFC3 6007DDC3 6007DDCC3 6007KDDCC3 EL352ZC3 EL35ZZC3 9107KDDC3 9107FFC3 107KSFFC3 773L07C3 6107PPC3

In stock

Price Break
3+ $11.64
5+ $10.99
10+ $10.86
25+ $10.73
49+ $10.59
74+ $10.46
99+ $9.81
199+ $9.68
249+ $9.55
499+ $9.42
999+ $9.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_ZDGB
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 17.7 kN
C<sub>or</sub> 10.3 kN
C<sub>u</sub> 0.805 kN
f<sub>0</sub> 14.8 kN
Grease 12000 rpm
Oil 14000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 40mm
d<sub>a</sub> Max. 42mm
D<sub>a</sub> Max. 57mm
r<sub>as</sub> Max. 1mm
Weight 0.155 kg
