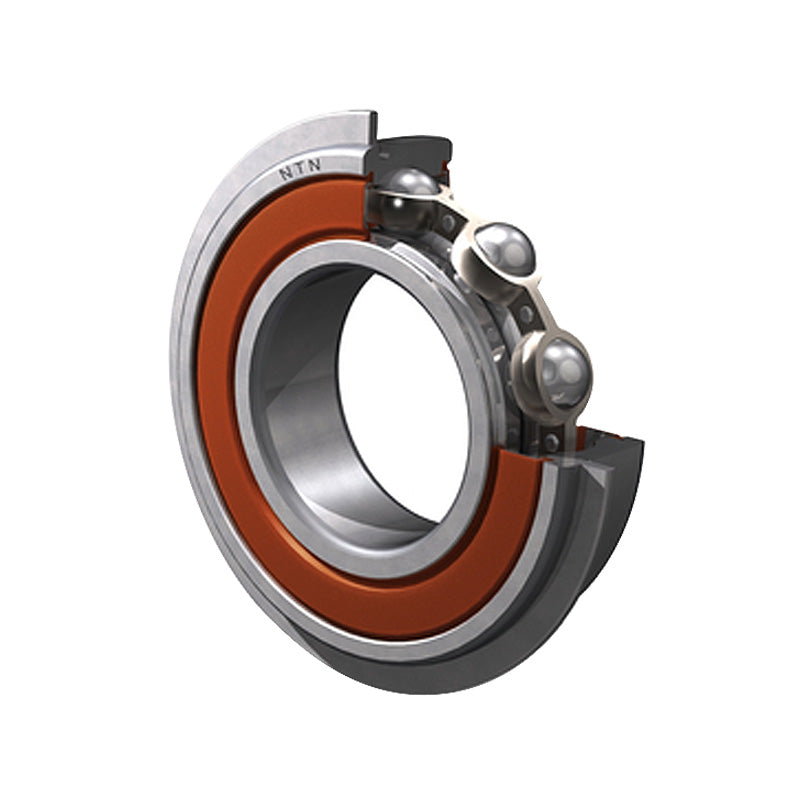

• NTN 6008LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 40x68x15mm
1 1

SKU: 6008LLUNR/2AS-NTN

NTN 6008LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 40x68x15mm

NTN 6008LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 40x68x15mm
$32.25 ex VAT
$32.25 ex VAT
Sale Sold out

Equivalent to: 6008LLUNRCM 6008LLUNR 6008NSENR 6008DUNR 6008RSNR 6008RSHNR 6008PNR 6008RSRNR 6008LUNR 60082NSENR 6008DDUNR 60082RSNR 6008-2RSNR 60082RS1NR 60082RSHNR 6008PPNR 60082RSRNR 6008LLUNR 6008RS2NR 60082RS2NR 60082RSLNR 6008LFSNR 6008EENR 9108NPPG 108KSZZG Z4993L08

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Outside Diameter:
68mm
Width:
15mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 40mm
D 68mm
B 15mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 18.6 kN
C<sub>or</sub> 11.5 kN
C<sub>u</sub> 0.89 kN
f<sub>0</sub> 15.2
--- Fitting Dimensions
Speed 6100rpm
D<sub>1</sub> Max. 64.82mm
a Max. 2.49mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
