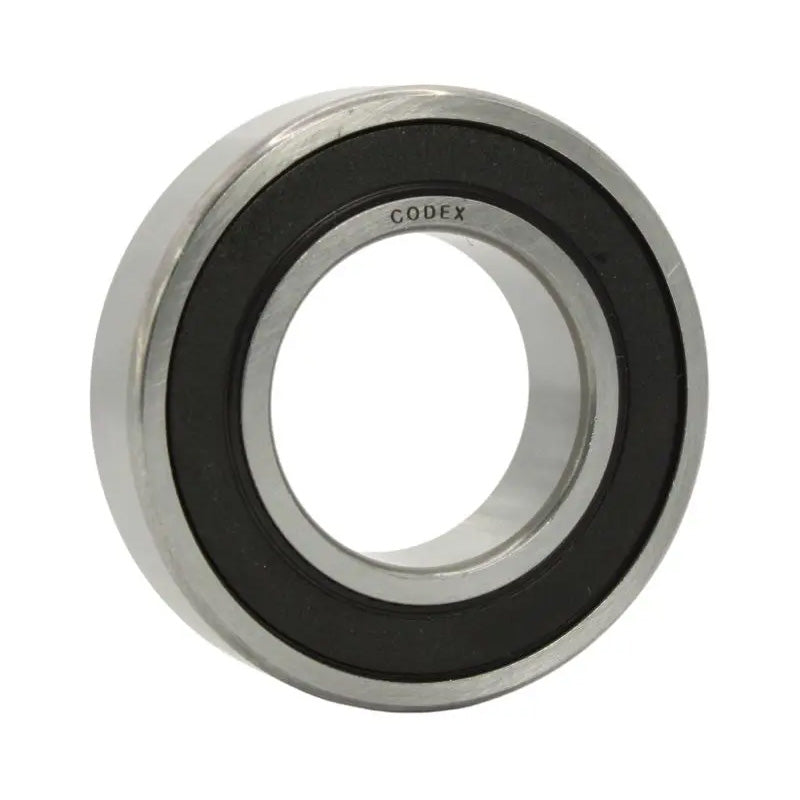

• Codex 60092RS Rubber Sealed Deep Groove Ball Bearing 45x75x16mm
  • Codex
1 2

SKU: 6009-2RS-CDX

Codex 60092RS Rubber Sealed Deep Groove Ball Bearing 45x75x16mm

Codex 60092RS Rubber Sealed Deep Groove Ball Bearing 45x75x16mm
$14.96 ex VAT
$14.96 ex VAT
Sale Sold out

Equivalent to: 60092RS 60092RSH 60092RS1 60092RSR 60092RSL 6009LFS 6009EE 6009DU 6009LLU EL452RS 6009PP 9109PP 109KSZZ 993L09 6109KK 10L45

In stock

Price Break
4+ $10.02
10+ $9.46
20+ $9.35
30+ $9.23
50+ $9.12
75+ $9.01
100+ $8.45
200+ $8.33
250+ $8.22
500+ $8.11
1000+ $7.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Codex - Good Quality
Inside Diameter:
45mm
Outside Diameter:
75mm
Width:
16mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 45mm
D 75mm
B 16mm
Dynamic load C 22.1 kN
Static load Co 14.6 kN
Fatigue load limit Pu 0.64
Reference speed 20000 rpm
Limiting speed 5600 rpm
Weight 0.25 kg
d1 54.8mm
D2 67.8mm
r1r2 1mm
da min 50.8mm
Da max 69.2mm
ra max 1mm
Calc factor kr 0.025
Calc factor Cor f0 15
