SKU: 6009-2Z-EU

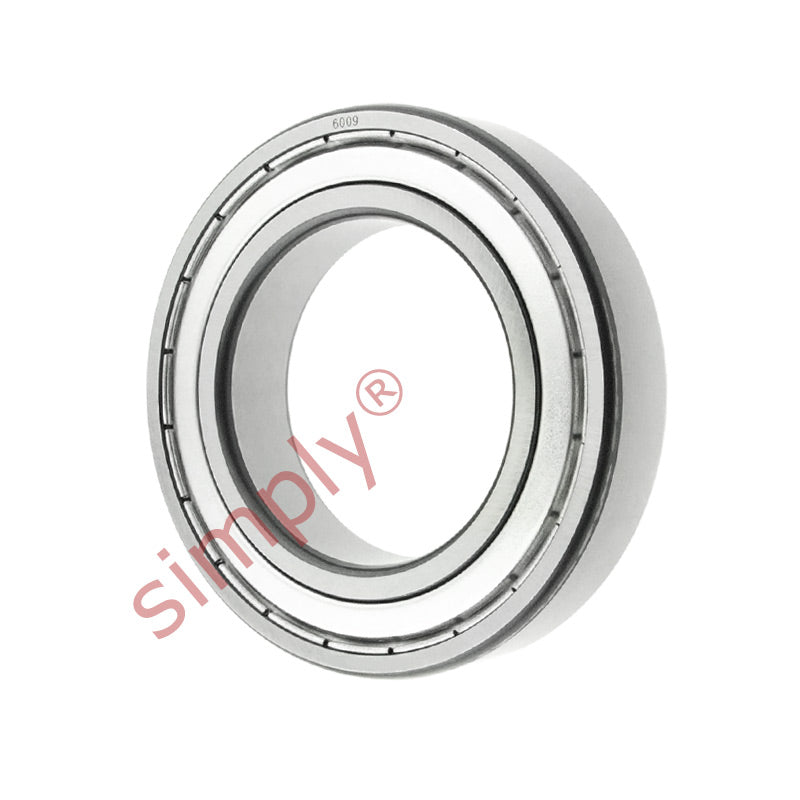

6009ZZ Budget Metal Shielded Deep Groove Ball Bearing 45x75x16mm
Equivalent to: 6009ZZ 60092Z 6009ZZ 60092ZR 6009ZZE 6009FF 6009DD 6009DDC 6009KDDC EL452Z EL45ZZ 9109KDD 9109FF 109KSFF 773L09 6109PP
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 45mm |
|---|---|
| D | 75mm |
| B | 16mm |
| r min | 1mm |
| Dynamic load Cr | 21 kN |
| Static load Cor | 15.1 kN |
| Speed in grease | 9200 rpm |
| Speed in oil | 11000 rpm |
