• NTN 6009 Open Type Deep Groove Ball Bearing 45x75x16mm
  • NTN 6009 Open Type Deep Groove Ball Bearing 45x75x16mm
  • NTN 6009 Open Type Deep Groove Ball Bearing 45x75x16mm
  • NTN
1 4

SKU: 6009-NTN

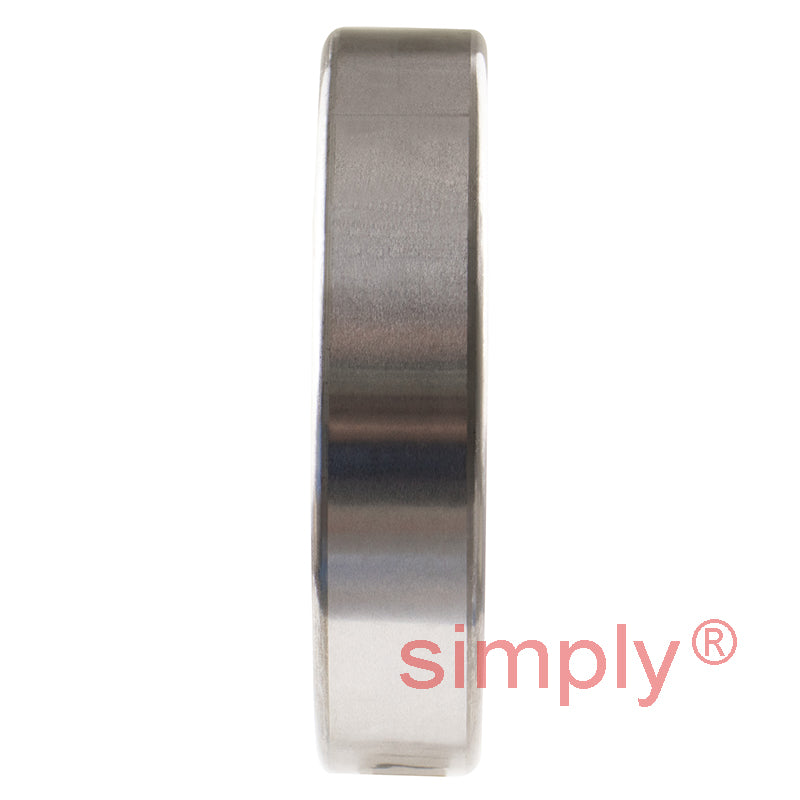

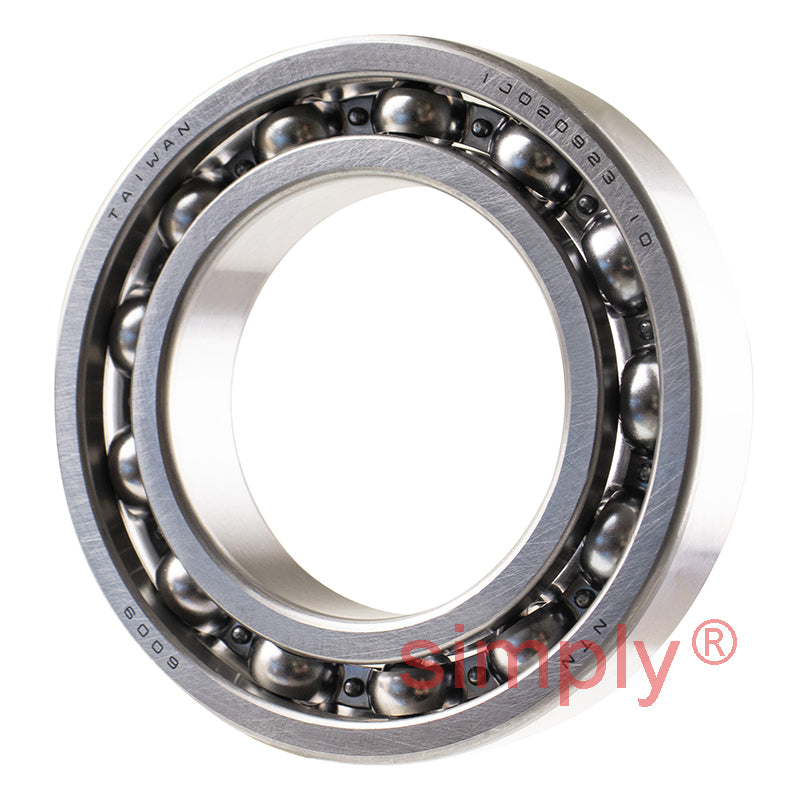

NTN 6009 Open Type Deep Groove Ball Bearing 45x75x16mm

NTN 6009 Open Type Deep Groove Ball Bearing 45x75x16mm
$20.86 ex VAT
$20.86 ex VAT
Sale Sold out

Equivalent to: 6009CM 9109K 9109 109KS 6109 3L09 EL45 ELL45

In stock

Price Break
3+ $13.97
5+ $13.19
10+ $13.03
25+ $12.87
49+ $12.72
74+ $12.56
99+ $11.78
199+ $11.62
249+ $11.46
499+ $11.30
999+ $10.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
75mm
Width:
16mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 45mm
D 75mm
B 16mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 23.2 kN
C<sub>or</sub> 15.1 kN
C<sub>u</sub> 1.16 kN
f<sub>0</sub> 15.3 kN
Grease 9200 rpm
Oil 11000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 50mm
D<sub>a</sub> Max. 70mm
r<sub>as</sub> Max. 1mm
Weight 0.237 kg
