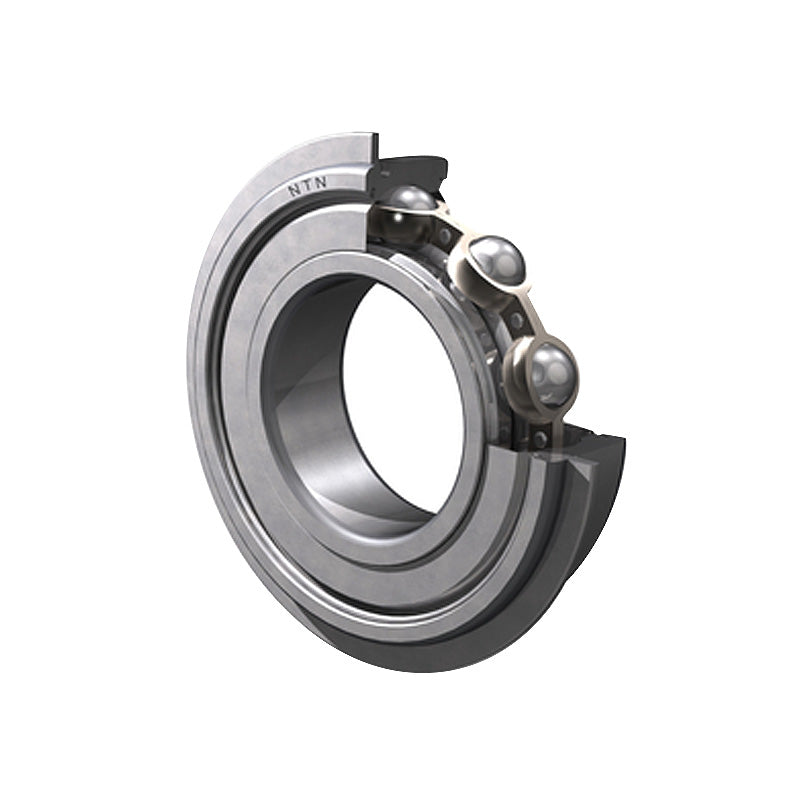

• NTN 6009ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 45x75x16mm
1 1

SKU: 6009ZZNR/2AS-NTN

NTN 6009ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 45x75x16mm

NTN 6009ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 45x75x16mm
$30.33 ex VAT
$30.33 ex VAT
Sale Sold out

Equivalent to: 6009ZZNRCM 6009ZZNR 6009ZZNR 60092ZNR 6009ZZNR 60092ZRNR 6009ZZENR 6009FFNR 6009DDNR 6009DDCNR 6009KDDCNR EL452ZNR EL45ZZNR 9109KDDG 4773L09 109KSFFG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
75mm
Width:
16mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 45mm
D 75mm
B 16mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 23.2 kN
C<sub>or</sub> 15.1 kN
C<sub>u</sub> 1.16 kN
f<sub>0</sub> 15.3 rpm
Grease 9200 rpm
--- Fitting Dimensions
Oil 11000 rpm
D<sub>1</sub> Max. 71.83mm
a Max. 2.49mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
