SKU: 6010-2Z-EU

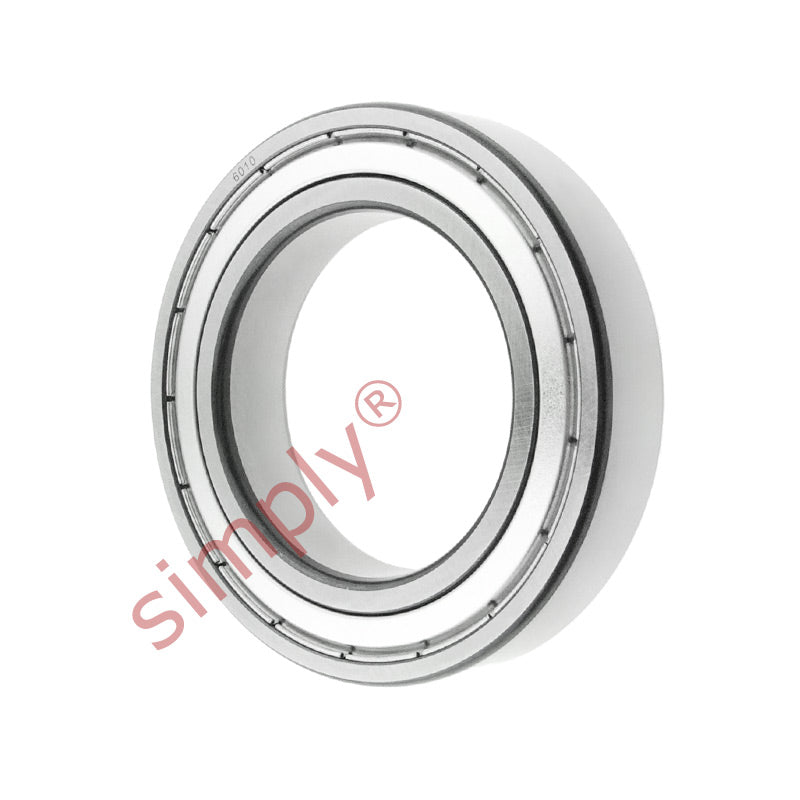

6010ZZ Budget Metal Shielded Deep Groove Ball Bearing 50x80x16mm
Equivalent to: 6010ZZ 60102Z 6010ZZ 60102ZR 6010ZZE 6010FF 6010DD 6010DDC 6010KDDC EL502Z EL50ZZ 9110KDD 9110FF 110KSFF 773L10 6110PP
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| B | 16mm |
| r min | 1mm |
| Dynamic load Cr | 21.8 kN |
| Static load Cor | 16.6 kN |
| Speed in grease | 8400 rpm |
| Speed in oil | 9900 rpm |
