SKU: 6010-ZZ-CDX

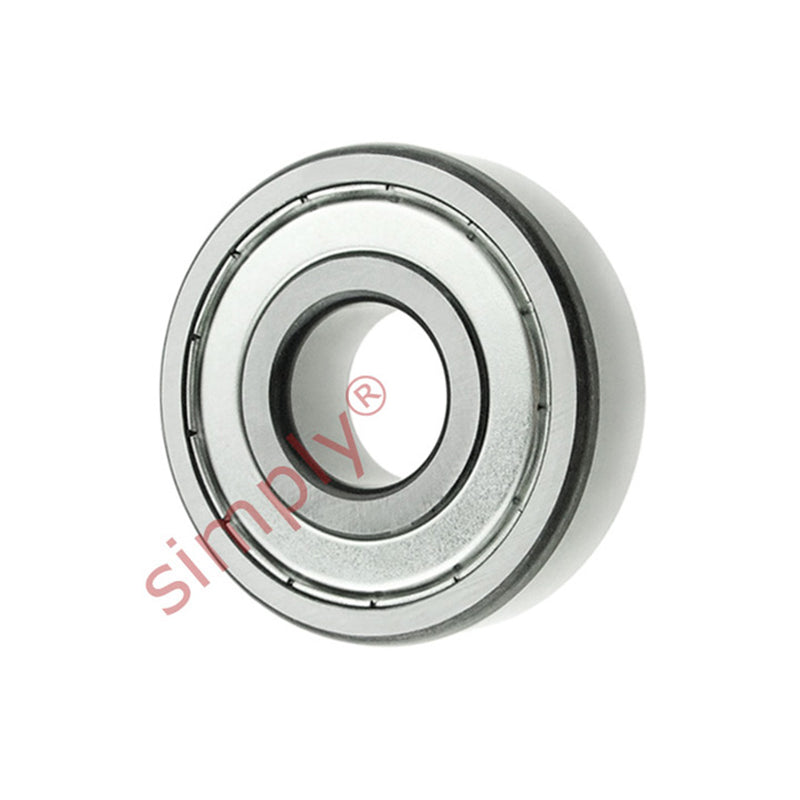

Codex 6010ZZ Metal Shielded Deep Groove Ball Bearing 50x80x16mm
Equivalent to: 6010ZZ 60102Z 60102ZR 6010ZZE 6010FF 6010DD 6010DDC 6010KDDC EL50ZZ EL502Z 9110KDD 9110FF 110KSFF 773L10 6110PP
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| B | 16mm |
| Dynamic load C | 22.9 kN |
| Static load Co | 16 kN |
| Fatigue load limit Pu | 0.71 |
| Reference speed | 18000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.26 kg |
| d1 | 59.8mm |
| D2 | 72.8mm |
| r1r2 min | 1mm |
| da min | 54.6mm |
| Da max | 75.4mm |
| ra max | 1 |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 15 |
