• NTN 6010NR Open Type Deep Groove Ball Bearing with Snap Ring 50x80x16mm
  • NTN
1 2

SKU: 6010NR-NTN

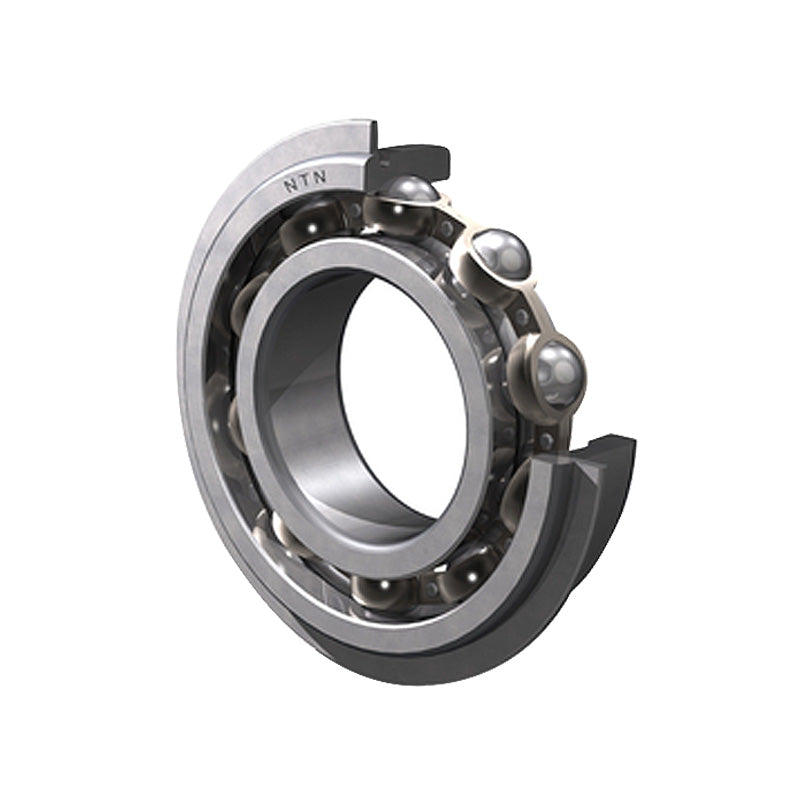

NTN 6010NR Open Type Deep Groove Ball Bearing with Snap Ring 50x80x16mm

NTN 6010NR Open Type Deep Groove Ball Bearing with Snap Ring 50x80x16mm
$72.45 ex VAT
$72.45 ex VAT
Sale Sold out

Equivalent to: 6010NRCM 9110KG 110KSG 43L10

In stock

Price Break
3+ $48.53
5+ $45.81
10+ $45.26
25+ $44.71
49+ $44.17
74+ $43.62
99+ $40.90
199+ $40.35
249+ $39.81
499+ $39.26
999+ $38.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm
Outside Diameter:
80mm
Width:
16mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 50mm
D 80mm
B 16mm
r<sub>s</sub> min 1mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 24.2 kN
C<sub>or</sub> 16.6 kN
C<sub>u</sub> 1.24 kN
f<sub>0</sub> 15.5 kN
Grease 8400 rpm
Oil 9800 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 76.81mm
a Max. 2.49mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 86.6mm
f Max. 1.7mm
--- Fitting Dimensions
d<sub>a</sub> Min. 55mm
d<sub>a</sub> Max. 57.5mm
D<sub>a</sub> Max. 75mm
D<sub>X</sub> (approx) 88mm
C<sub>Y</sub> Max. 3.8mm
C<sub>Z</sub> Min. 1.7mm
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.261 kg
