SKU: 6010NR-SKF

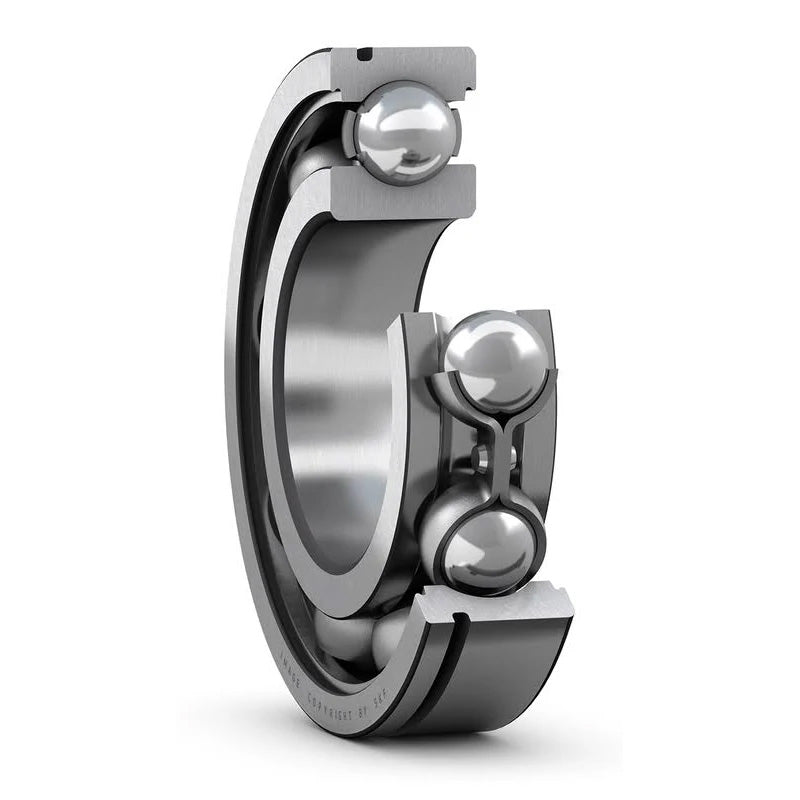

SKF 6010NR Open Type Snap Ring Deep Groove Bearing 50x80x16mm
SKF 6010NR Open Type Snap Ring Deep Groove Bearing 50x80x16mm
Regular price
$78.17
ex VAT
Regular price
Sale price
$78.17
ex VAT
In stock
Price Break
4+
$52.36
10+
$49.42
20+
$48.83
30+
$48.24
50+
$47.65
75+
$47.06
100+
$44.12
200+
$43.53
250+
$42.94
500+
$42.36
1000+
$41.18
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| B | 16mm |
| Dynamic load C | 22.9 kN |
| Static load Co | 16 kN |
| Fatigue load limit Pu | 0.71 kN |
| Reference speed | 18000 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.26kg |
| Snap ring | SP 80 |
| d1 | 59.7mm |
| D2 | 72.8mm |
| D3 | 76.81mm |
| D4 | 86.6mm |
| b | 1.9mm |
| f | 1.7mm |
| C | 2.49mm |
| r1r2 min | 1mm |
| ro max | 0.6mm |
| da min | 54.6mm |
| Da max | 75.4mm |
| Db min | 88mm |
| ba min | 2.2mm |
| Ca max | 4.19mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 15 |
