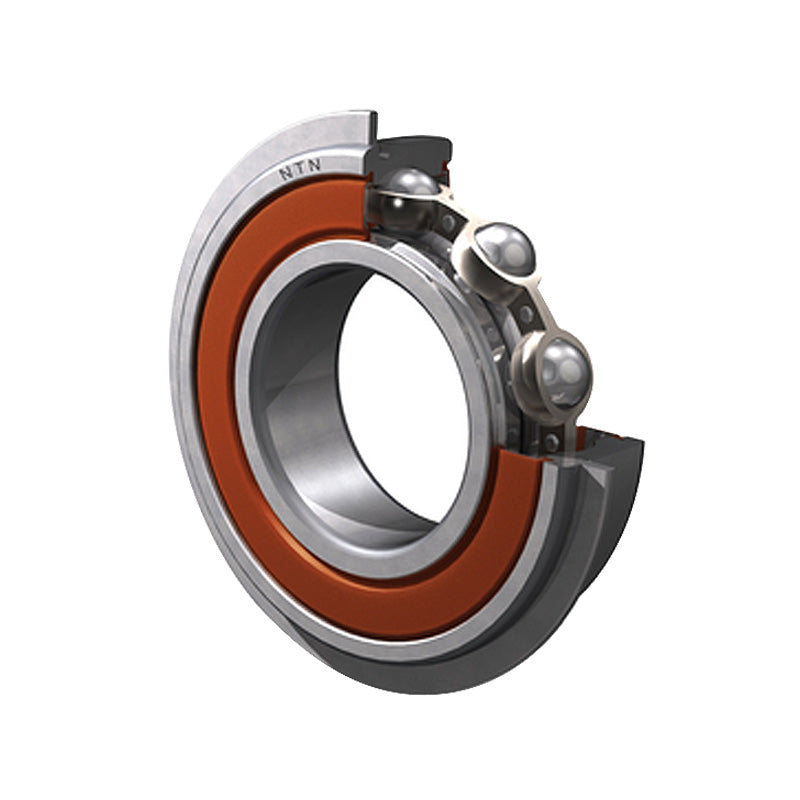

• NTN 6011LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 55x90x18mm
1 1

SKU: 6011LLUNR/2AS-NTN

NTN 6011LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 55x90x18mm

NTN 6011LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 55x90x18mm
$41.77 ex VAT
$41.77 ex VAT
Sale Sold out

Equivalent to: 6011LLUNRCM 6011LLUNR 6011NSENR 6011DUNR 6011RSNR 6011RSHNR 6011PNR 6011RSRNR 6011LUNR 60112NSENR 6011DDUNR 60112RSNR 6011-2RSNR 60112RS1NR 60112RSHNR 6011PPNR 60112RSRNR 6011LLUNR 6011RS2NR 60112RS2NR 60112RSLNR 6011LFSNR 6011EENR 9111NPPG 111KSZZG Z4993L11

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Outside Diameter:
90mm
Width:
18mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 55mm
D 90mm
B 18mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 31.5 kN
C<sub>or</sub> 21.2 kN
C<sub>u</sub> 1.62 kN
f<sub>0</sub> 15.3
--- Fitting Dimensions
Speed 4500rpm
D<sub>1</sub> Max. 86.79mm
a Max. 2.87mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
