SKU: 6011NR-SKF

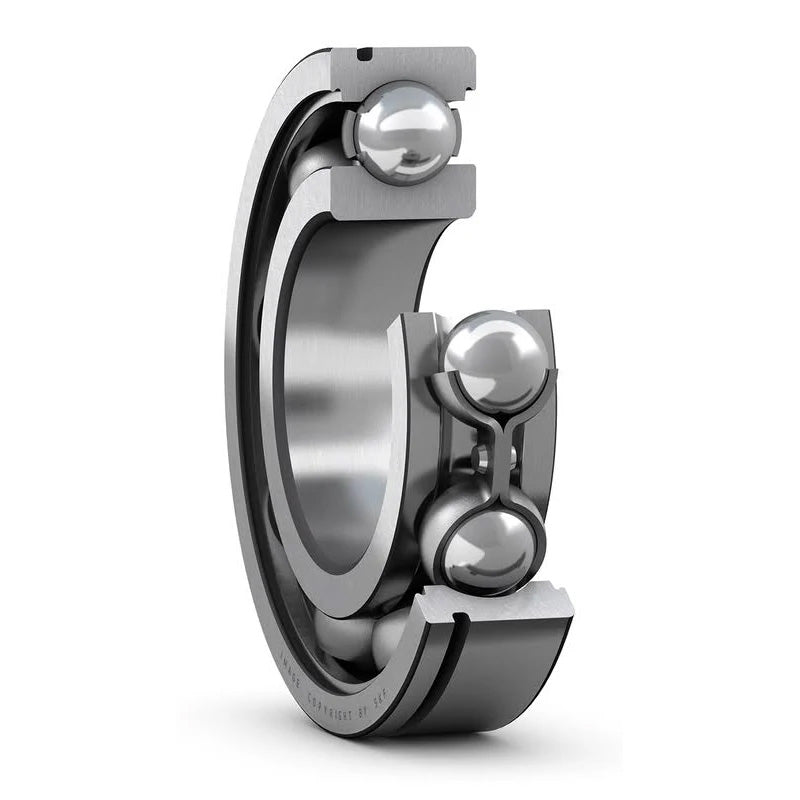

SKF 6011NR Open Type Snap Ring Deep Groove Bearing 55x90x18mm
SKF 6011NR Open Type Snap Ring Deep Groove Bearing 55x90x18mm
Regular price
$80.55
ex VAT
Regular price
Sale price
$80.55
ex VAT
In stock
Price Break
4+
$53.95
10+
$50.92
20+
$50.31
30+
$49.70
50+
$49.10
75+
$48.49
100+
$45.46
200+
$44.86
250+
$44.25
500+
$43.64
1000+
$42.43
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 55mm |
|---|---|
| D | 90mm |
| B | 18mm |
| Dynamic load C | 29.6 kN |
| Static load Co | 21.2 kN |
| Fatigue load limit Pu | 0.9 kN |
| Reference speed | 16000 rpm |
| Limiting speed | 10000 rpm |
| Weight | 0.38kg |
| Snap ring | SP 90 |
| d1 | 66.3mm |
| D2 | 81.5mm |
| D3 | 86.79mm |
| D4 | 96.5mm |
| b | 2.7mm |
| f | 2.46mm |
| C | 2.87mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da min | 61mm |
| Da max | 84mm |
| Db min | 98mm |
| ba min | 3mm |
| Ca max | 5.33mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 15 |
