• NTN 6011ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 55x90x18mm
1 1

SKU: 6011ZZNR/2AS-NTN

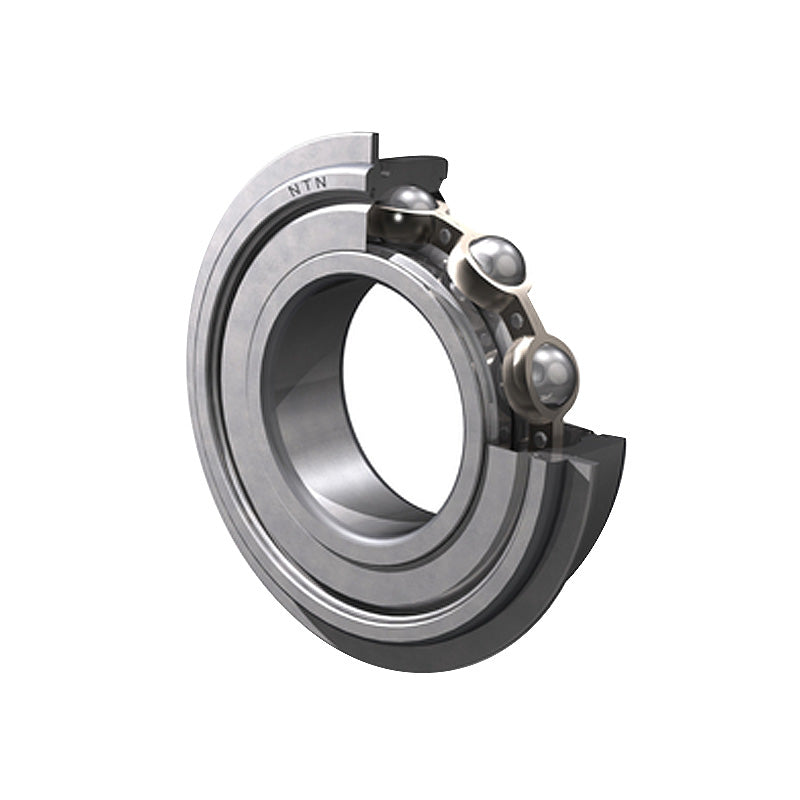

NTN 6011ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 55x90x18mm

NTN 6011ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 55x90x18mm
$38.11 ex VAT
$38.11 ex VAT
Sale Sold out

Equivalent to: 6011ZZNRCM 6011ZZNR 6011ZZNR 60112ZNR 6011ZZNR 60112ZRNR 6011ZZENR 6011FFNR 6011DDNR 6011DDCNR 6011KDDCNR EL552ZNR EL55ZZNR 9111KDDG 4773L11 111KSFFG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Outside Diameter:
90mm
Width:
18mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 55mm
D 90mm
B 18mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 31.5 kN
C<sub>or</sub> 21.2 kN
C<sub>u</sub> 1.62 kN
f<sub>0</sub> 15.3 rpm
Grease 7700 rpm
--- Fitting Dimensions
Oil 9000 rpm
D<sub>1</sub> Max. 86.79mm
a Max. 2.87mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
