SKU: 6012-2RS-CDX

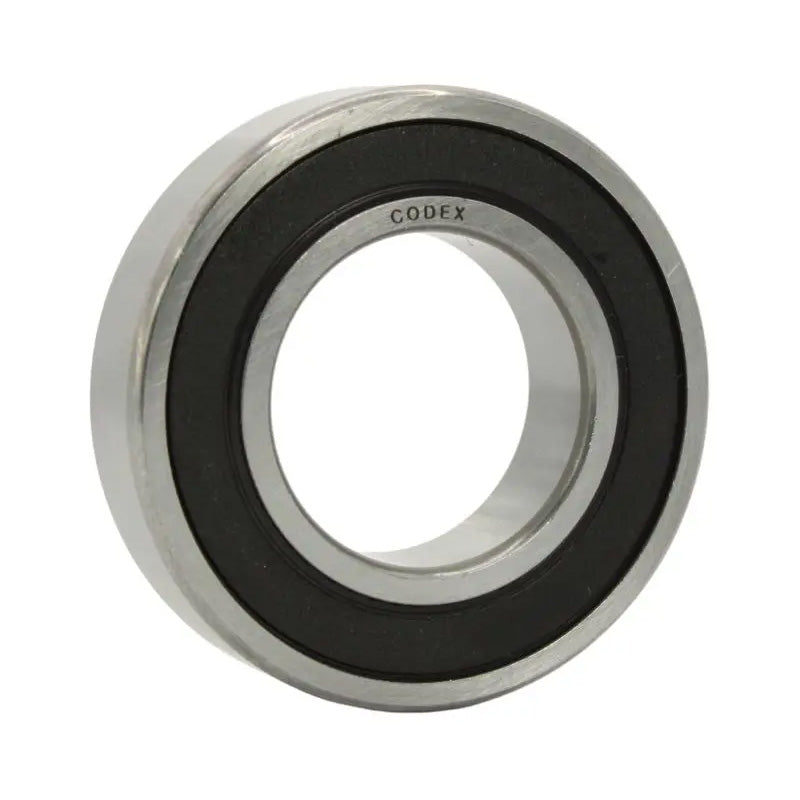

Codex 60122RS Rubber Sealed Deep Groove Ball Bearing 60x95x18mm
Codex 60122RS Rubber Sealed Deep Groove Ball Bearing 60x95x18mm
Regular price
$25.35
ex VAT
Regular price
Sale price
$25.35
ex VAT
Equivalent to: 60122RS 60122RSH 60122RS1 60122RSR 60122RSL 6012LFS 6012EE 6012DU 6012LLU EL602RS 6012PP 9112PP 112KSZZ 993L12 6112KK 10L60
In stock
Price Break
4+
$16.98
10+
$16.03
20+
$15.84
30+
$15.65
50+
$15.46
75+
$15.27
100+
$14.31
200+
$14.12
250+
$13.93
500+
$13.74
1000+
$13.36
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 95mm |
| B | 18mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 23.2 kN |
| Fatigue load limit Pu | 0.98 |
| Reference speed | 15000 rpm |
| Limiting speed | 4300 rpm |
| Weight | 0.42 kg |
| d1 | 71.3mm |
| D2 | 86.5mm |
| r1r2 | 1.1mm |
| da min | 66mm |
| Da max | 89mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 16 |
