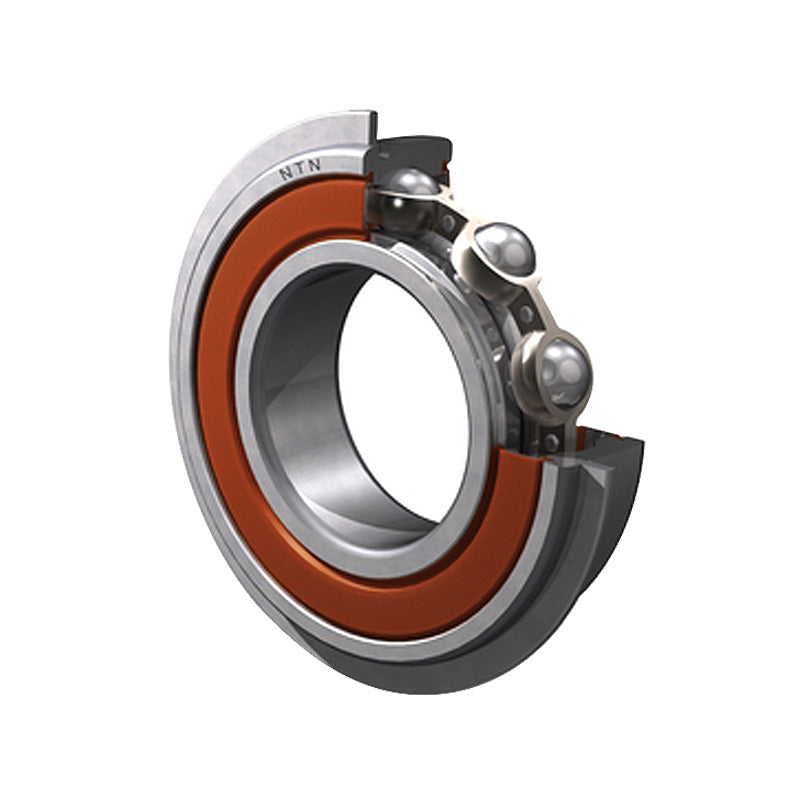

• NTN 6012LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 60x95x18mm
1 1

SKU: 6012LLUNR/2AS-NTN

NTN 6012LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 60x95x18mm

NTN 6012LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 60x95x18mm
$44.56 ex VAT
$44.56 ex VAT
Sale Sold out

Equivalent to: 6012LLUNRCM 6012LLUNR 6012NSENR 6012DUNR 6012RSNR 6012RSHNR 6012PNR 6012RSRNR 6012LUNR 60122NSENR 6012DDUNR 60122RSNR 6012-2RSNR 60122RS1NR 60122RSHNR 6012PPNR 60122RSRNR 6012LLUNR 6012RS2NR 60122RS2NR 60122RSLNR 6012LFSNR 6012EENR 9112NPPG 112KSZZG Z4993L12

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
18mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 32.5 kN
C<sub>or</sub> 23.2 kN
C<sub>u</sub> 1.73 kN
f<sub>0</sub> 15.6
--- Fitting Dimensions
Speed 4100rpm
D<sub>1</sub> Max. 91.82mm
a Max. 2.87mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
