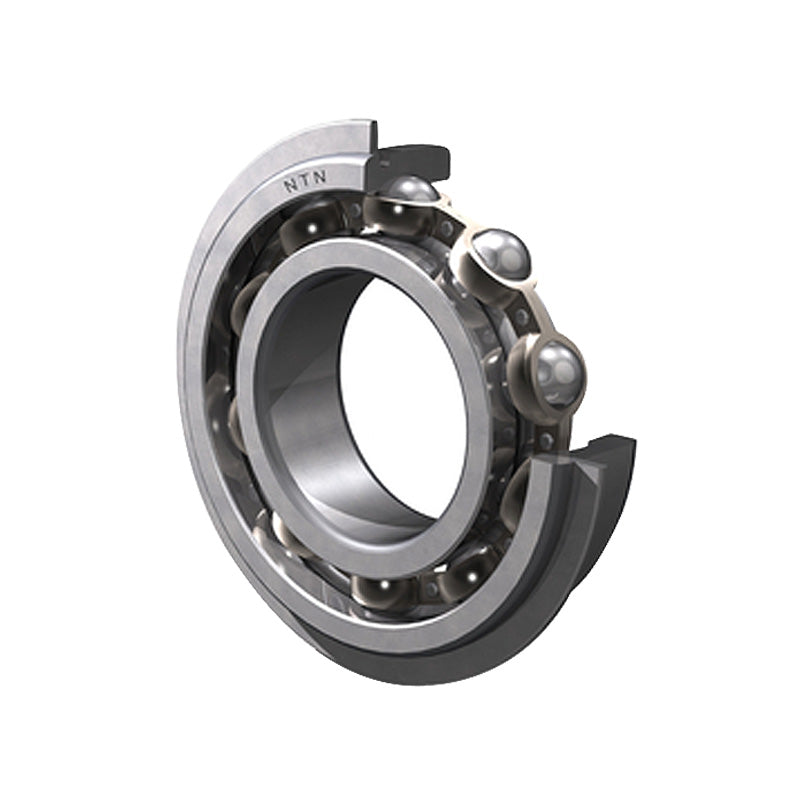

• NTN 6012NR Open Type Deep Groove Ball Bearing with Snap Ring 60x95x18mm
  • NTN
1 2

SKU: 6012NR-NTN

NTN 6012NR Open Type Deep Groove Ball Bearing with Snap Ring 60x95x18mm

NTN 6012NR Open Type Deep Groove Ball Bearing with Snap Ring 60x95x18mm
$104.61 ex VAT
$104.61 ex VAT
Sale Sold out

Equivalent to: 6012NRCM 9112KG 112KSG 43L12

In stock

Price Break
3+ $70.07
5+ $66.13
10+ $65.35
25+ $64.56
49+ $63.77
74+ $62.98
99+ $59.05
199+ $58.26
249+ $57.47
499+ $56.69
999+ $55.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
18mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>s</sub> min 1.1mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 32.5 kN
C<sub>or</sub> 23.2 kN
C<sub>u</sub> 1.73 kN
f<sub>0</sub> 15.6 kN
Grease 7000 rpm
Oil 8300 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 91.82mm
a Max. 2.87mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 101.6mm
f Max. 2.46mm
--- Fitting Dimensions
d<sub>a</sub> Min. 66.5mm
d<sub>a</sub> Max. 69mm
D<sub>a</sub> Max. 88.5mm
D<sub>X</sub> (approx) 103mm
C<sub>Y</sub> Max. 5mm
C<sub>Z</sub> Min. 2.5mm
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.414 kg
Downloads
Reviews
View full details
