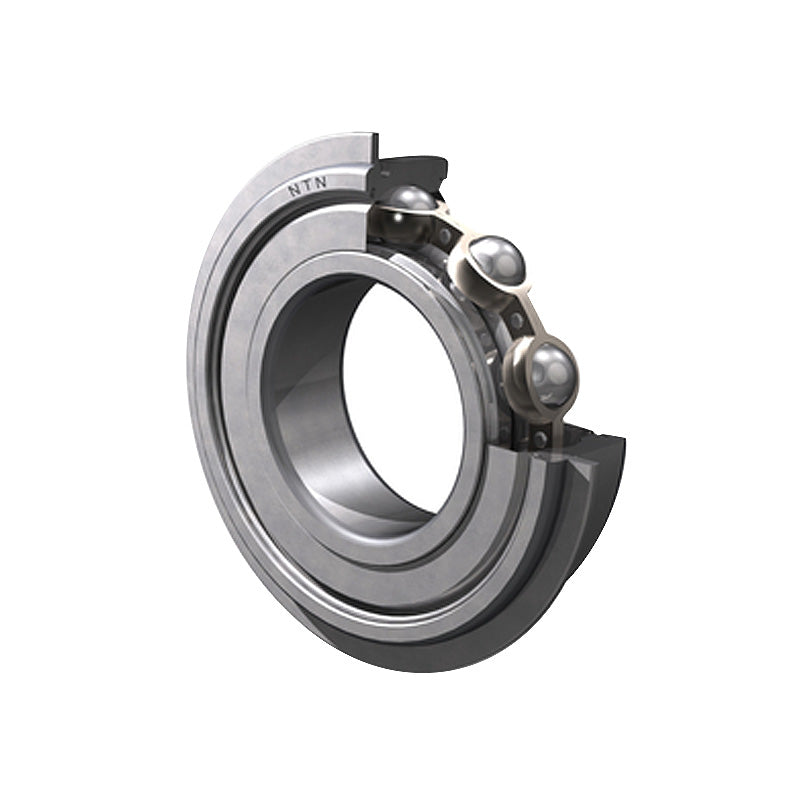

• NTN 6012ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 60x95x18mm
1 1

SKU: 6012ZZNR/2AS-NTN

NTN 6012ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 60x95x18mm

NTN 6012ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 60x95x18mm
$44.56 ex VAT
$44.56 ex VAT
Sale Sold out

Equivalent to: 6012ZZNRCM 6012ZZNR 6012ZZNR 60122ZNR 6012ZZNR 60122ZRNR 6012ZZENR 6012FFNR 6012DDNR 6012DDCNR 6012KDDCNR EL602ZNR EL60ZZNR 9112KDDG 4773L12 112KSFFG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
18mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 32.5 kN
C<sub>or</sub> 23.2 kN
C<sub>u</sub> 1.73 kN
f<sub>0</sub> 15.6 rpm
Grease 7000 rpm
--- Fitting Dimensions
Oil 8300 rpm
D<sub>1</sub> Max. 91.82mm
a Max. 2.87mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
