SKU: 6013/HC5C3-SKF

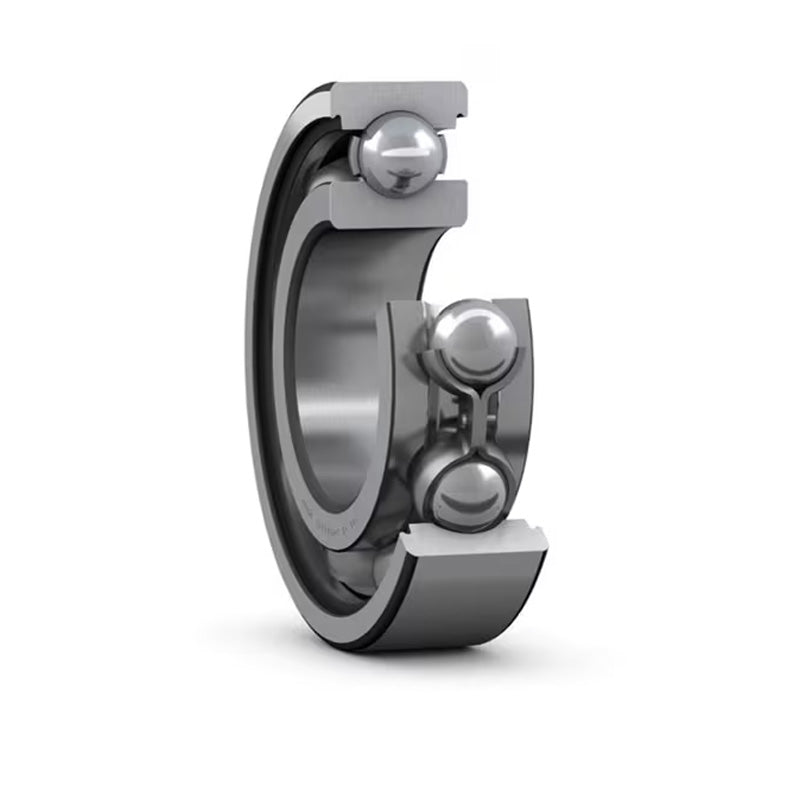

SKF 6013HC5C3 Hybrid Ball Bearing Open Type 65x100x18mm

Name: SKF 6013HC5C3 Hybrid Ball Bearing Open Type 65x100x18mm
Brand: SKF
SKU: 6013/HC5C3-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Life Hybrid Deep Groove Ball Bearings: Special application bearings, the outer and inner races are made form bearing steel and the rolling elements are made from Silicon Nitride (SiN4) In addition to being excellent electrical insulators hybrid bearings have a higher speed capacity and longer service life that normal steel only bearings.
Benefits: Electrically insulated, sealed for life, high life expectancy.

Brand / Quality:: SKF - High Quality
Inside Diameter:: 65mm
Outside Diameter:: 100mm
Width:: 18mm
Seals / Shields:: None
Clearance:: C5

Technical

d	65mm
D	100mm
B	18mm
Dynamic load Cr	31.9 kN
Static load Cor	25 kN
Fatigue load limit	1.06 kN
Reference speed	18000 rpm
Limiting speed	10000 rpm
Weight	0.41 kg
d1	76.3mm
D1	91.5mm
r1r2 min	1.1mm
da min	71mm
Da max	94mm
ra max	1mm
fo	16
