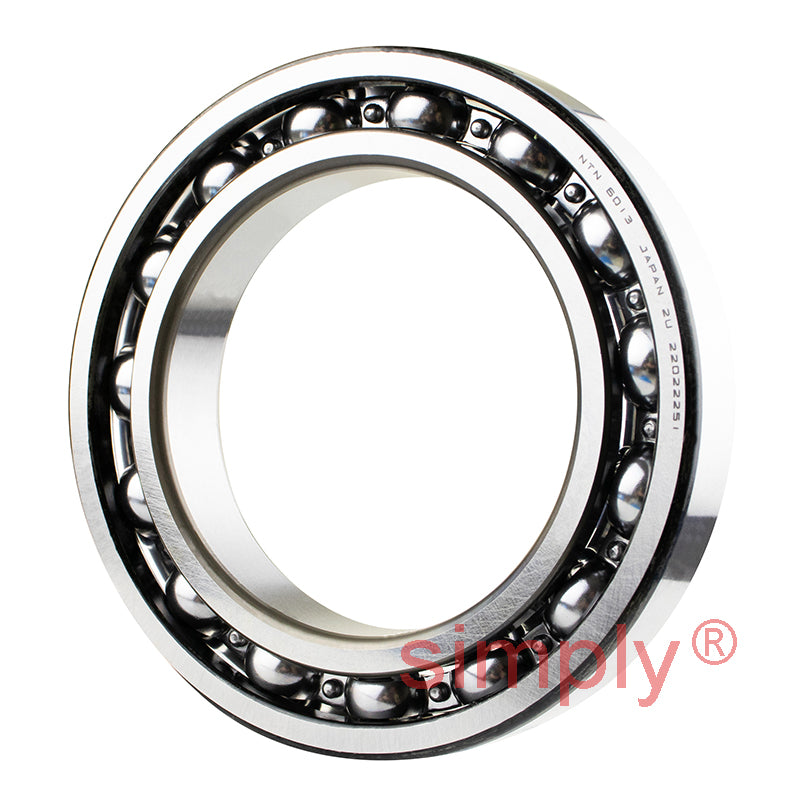

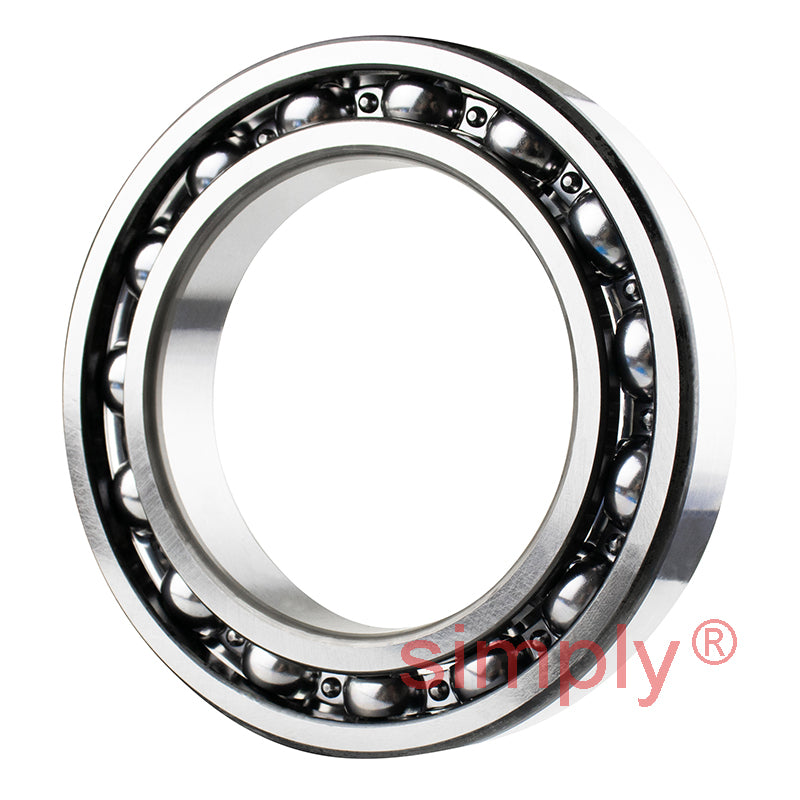

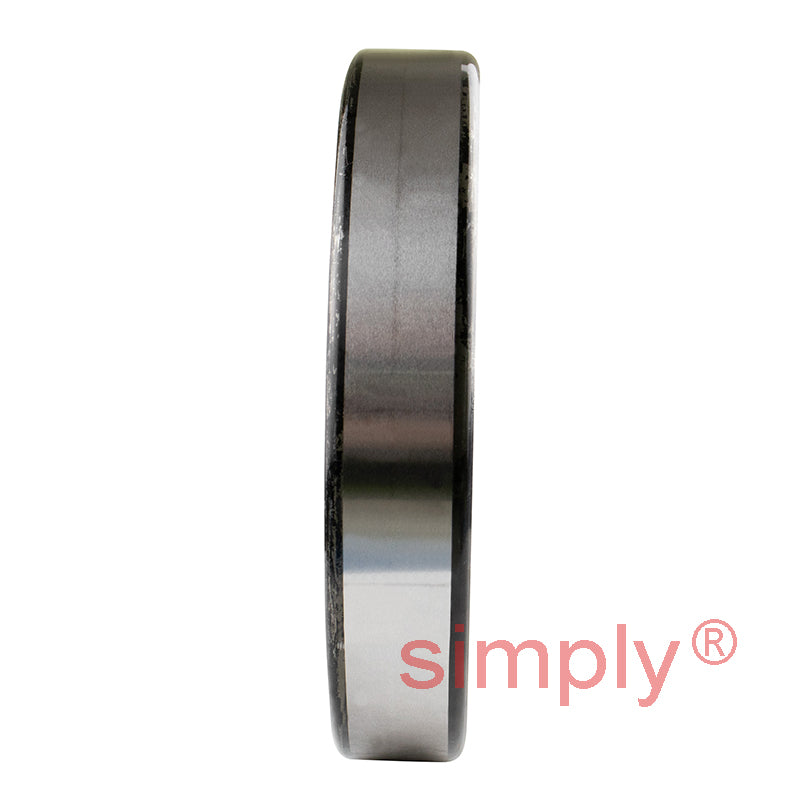

NTN 6013 Open Type Deep Groove Ball Bearing 65x100x18mm

NTN 6013 Open Type Deep Groove Ball Bearing 65x100x18mm
$66.65 ex VAT
$66.65 ex VAT
Sale Sold out

Equivalent to: 6013CM 9113K 9113 113KS 6113 3L13 EL65 ELL65

In stock

Price Break
3+ $44.64
5+ $42.13
10+ $41.63
25+ $41.13
49+ $40.63
74+ $40.13
99+ $37.62
199+ $37.12
249+ $36.62
499+ $36.12
999+ $35.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
65mm
Outside Diameter:
100mm
Width:
18mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 65mm
D 100mm
B 18mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 34 kN
C<sub>or</sub> 25.2 kN
C<sub>u</sub> 1.83 kN
f<sub>0</sub> 15.8 kN
Grease 6500 rpm
Oil 7700 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 71.5mm
D<sub>a</sub> Max. 93.5mm
r<sub>as</sub> Max. 1mm
Weight 0.421 kg
