• NTN 6013NR Open Type Deep Groove Ball Bearing with Snap Ring 65x100x18mm
  • NTN
1 2

SKU: 6013NR-NTN

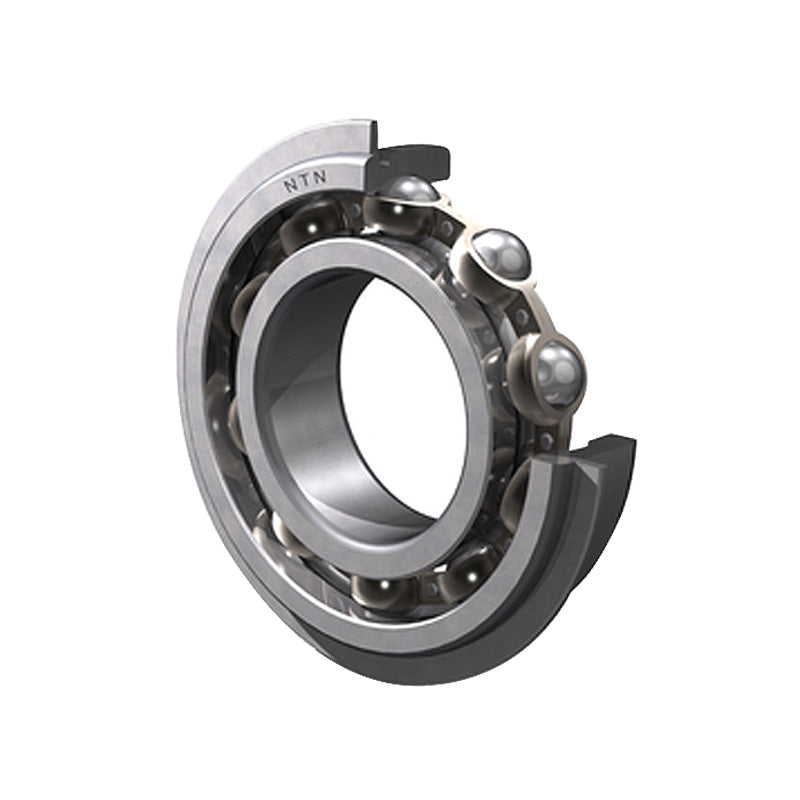

NTN 6013NR Open Type Deep Groove Ball Bearing with Snap Ring 65x100x18mm

NTN 6013NR Open Type Deep Groove Ball Bearing with Snap Ring 65x100x18mm
$97.02 ex VAT
$97.02 ex VAT
Sale Sold out

Equivalent to: 6013NRCM 9113KG 113KSG 43L13

In stock

Price Break
3+ $64.99
5+ $61.34
10+ $60.61
25+ $59.88
49+ $59.15
74+ $58.42
99+ $54.77
199+ $54.03
249+ $53.30
499+ $52.57
999+ $51.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
NTN - High Quality
Inside Diameter:
65mm
Outside Diameter:
100mm
Width:
18mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 65mm
D 100mm
B 18mm
r<sub>s</sub> min 1.1mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 34 kN
C<sub>or</sub> 25.2 kN
C<sub>u</sub> 1.83 kN
f<sub>0</sub> 15.8 kN
Grease 6500 rpm
Oil 7700 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 96.8mm
a Max. 2.87mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 106.5mm
f Max. 2.46mm
--- Fitting Dimensions
d<sub>a</sub> Min. 71.5mm
d<sub>a</sub> Max. 74mm
D<sub>a</sub> Max. 93.5mm
D<sub>X</sub> (approx) 108mm
C<sub>Y</sub> Max. 5mm
C<sub>Z</sub> Min. 2.5mm
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.421 kg
