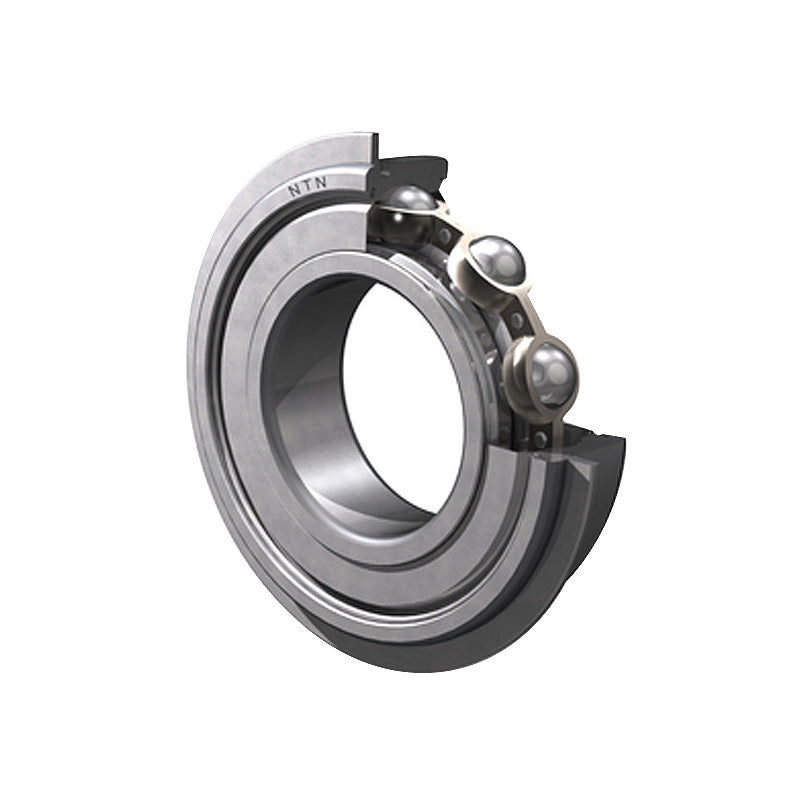

• NTN 6013ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 65x100x18mm
1 1

SKU: 6013ZZNR/2AS-NTN

NTN 6013ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 65x100x18mm

NTN 6013ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 65x100x18mm
$50.13 ex VAT
$50.13 ex VAT
Sale Sold out

Equivalent to: 6013ZZNRCM 6013ZZNR 6013ZZNR 60132ZNR 6013ZZNR 60132ZRNR 6013ZZENR 6013FFNR 6013DDNR 6013DDCNR 6013KDDCNR EL652ZNR EL65ZZNR 9113KDDG 4773L13 113KSFFG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
65mm
Outside Diameter:
100mm
Width:
18mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 65mm
D 100mm
B 18mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 34 kN
C<sub>or</sub> 25.2 kN
C<sub>u</sub> 1.83 kN
f<sub>0</sub> 15.8 rpm
Grease 6500 rpm
--- Fitting Dimensions
Oil 7700 rpm
D<sub>1</sub> Max. 96.8mm
a Max. 2.87mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
