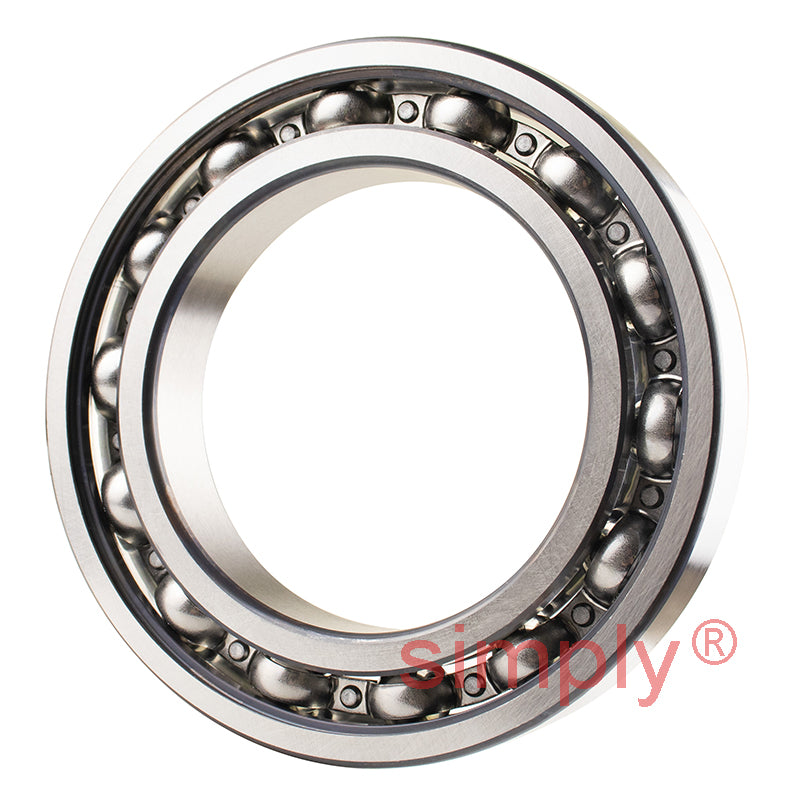

• Major Branded 6014C3 Open Deep Groove Ball Bearing 70x110x20mm
  • Major Branded 6014C3 Open Deep Groove Ball Bearing 70x110x20mm
  • Major Branded 6014C3 Open Deep Groove Ball Bearing 70x110x20mm
1 3

SKU: 6014/C3-MB

Major Branded 6014C3 Open Deep Groove Ball Bearing 70x110x20mm

Major Branded 6014C3 Open Deep Groove Ball Bearing 70x110x20mm
$68.79 ex VAT
$68.79 ex VAT
Sale Sold out

Equivalent to: 6014 6014C3

In stock

Price Break
10+ $46.07
19+ $43.48
29+ $42.97
39+ $42.45
49+ $41.93
74+ $41.41
99+ $38.82
199+ $38.31
249+ $37.79
499+ $37.27
999+ $36.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
Major Brand - High Quality
Inside Diameter:
70mm
Outside Diameter:
110mm
Width:
20mm
Seals / Shields:
None
Clearance:
C3
Technical
d 70mm
D 110mm
B 20mm
Dynamic load C 39.7 kN
Static load Co 31 kN
Fatigue load limit Pu 1.32 kN
Reference speed 13000 rpm
Limiting speed 8000 rpm
Mass 0.6 kg
d1 82.9mm
D1 97.2mm
D2 99.9mm
r1r2 min 1.1mm
da min 76mm
Da max 104mm
ra max 1mm
Calc factor Kr 0.025
Calc factor 16
