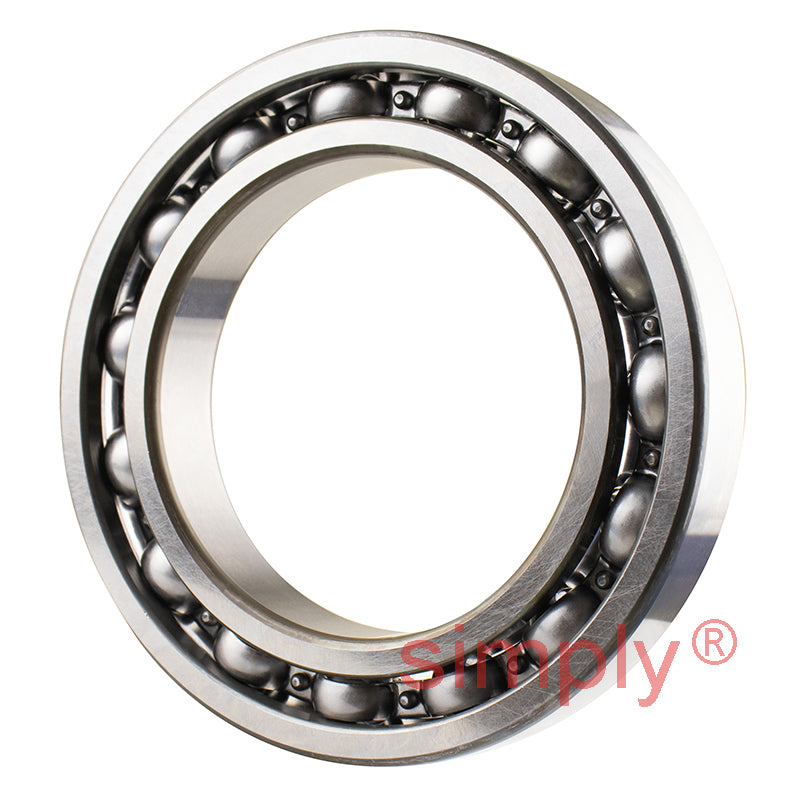

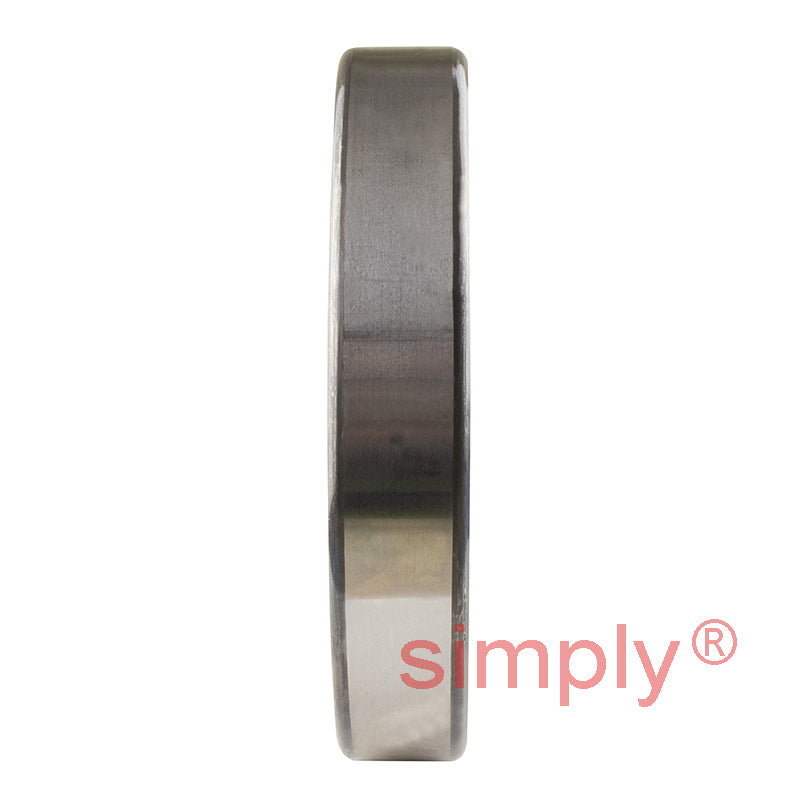

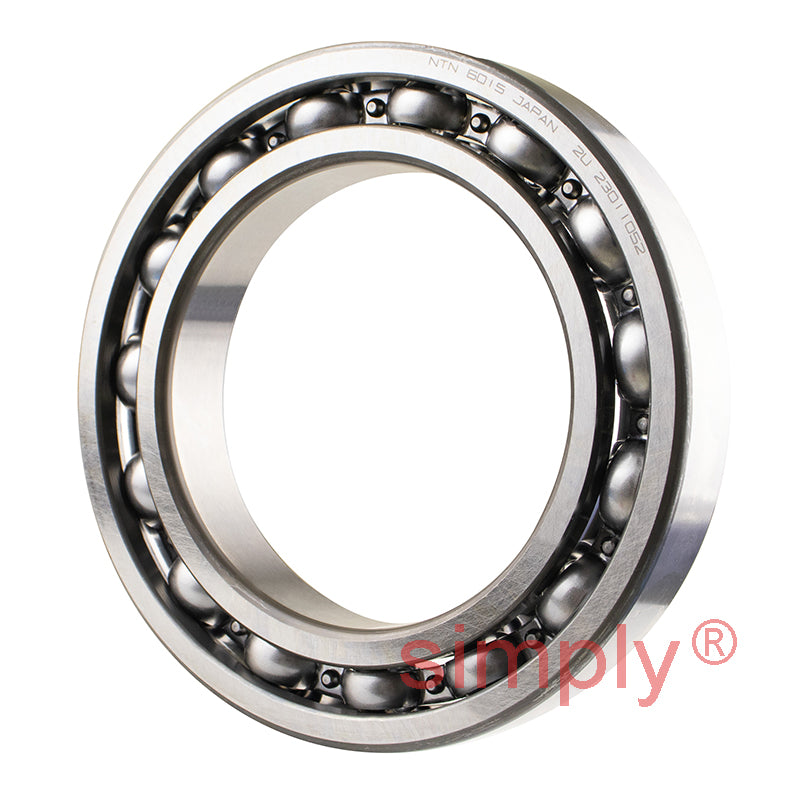

• NTN 6015 Open Type Deep Groove Ball Bearing 75x115x20mm
  • NTN 6015 Open Type Deep Groove Ball Bearing 75x115x20mm
  • NTN 6015 Open Type Deep Groove Ball Bearing 75x115x20mm
  • NTN
1 4

SKU: 6015-NTN

NTN 6015 Open Type Deep Groove Ball Bearing 75x115x20mm

NTN 6015 Open Type Deep Groove Ball Bearing 75x115x20mm
$68.40 ex VAT
$68.40 ex VAT
Sale Sold out

Equivalent to: 6015CM 9115K 9115 115KS 6115 3L15 EL75 ELL75

In stock

Price Break
3+ $45.82
5+ $43.24
10+ $42.73
25+ $42.21
49+ $41.70
74+ $41.18
99+ $38.61
199+ $38.10
249+ $37.58
499+ $37.07
999+ $36.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
75mm
Outside Diameter:
115mm
Width:
20mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 75mm
D 115mm
B 20mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 44 kN
C<sub>or</sub> 33.5 kN
C<sub>u</sub> 2.44 kN
f<sub>0</sub> 15.8 kN
Grease 5700 rpm
Oil 6700 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 81.5mm
D<sub>a</sub> Max. 108.5mm
r<sub>as</sub> Max. 1mm
Weight 0.649 kg
