SKU: 6015LLBC3/2AS-NTN

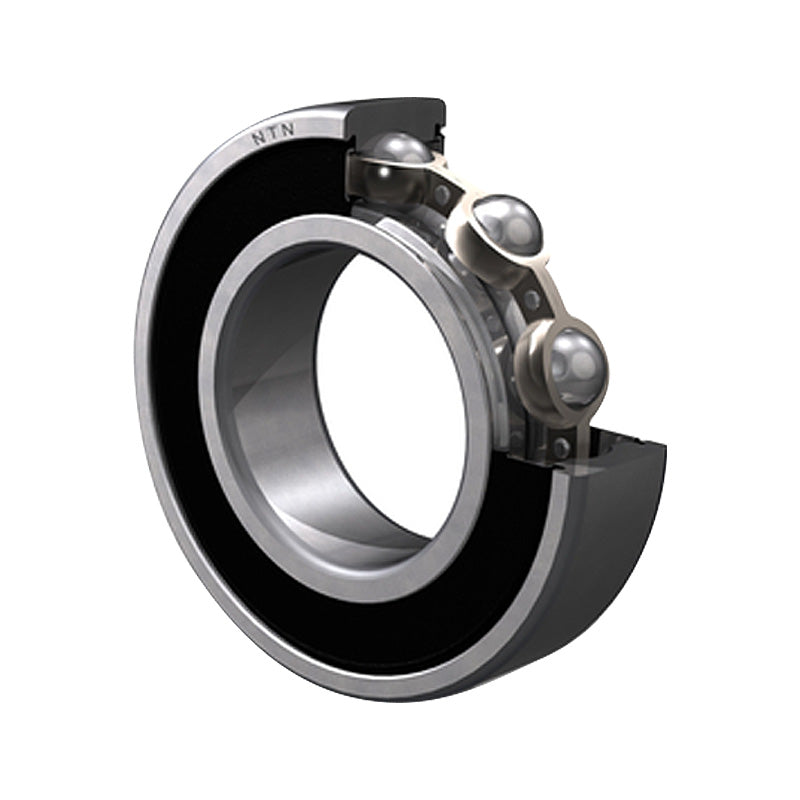

NTN 6015LLBC3/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 75x115x20mm - Allow 2-3 Days
NTN 6015LLBC3/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 75x115x20mm - Allow 2-3 Days
Regular price
$73.55
ex VAT
Regular price
Sale price
$73.55
ex VAT
Equivalent to: 60152NKEC3 6015VVC3 60152RSLC3 60152RZC3
In stock
Price Break
3+
$54.80
5+
$52.58
10+
$51.48
25+
$49.82
49+
$48.71
74+
$45.94
99+
$38.75
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 115mm
- Width:
- 20mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 75mm |
| D | 115mm |
| B | 20mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 44 kN |
| C<sub>or</sub> | 33.5 kN |
| C<sub>u</sub> | 2.44 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 5700 rpm |
| Oil | 6700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 81.5mm |
| d<sub>a</sub> Max. | 85.5mm |
| D<sub>a</sub> Max. | 108.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.649 kg |
