• NTN 6016NR Open Type Deep Groove Ball Bearing with Snap Ring 80x125x22mm
  • NTN
1 2

SKU: 6016NR-NTN

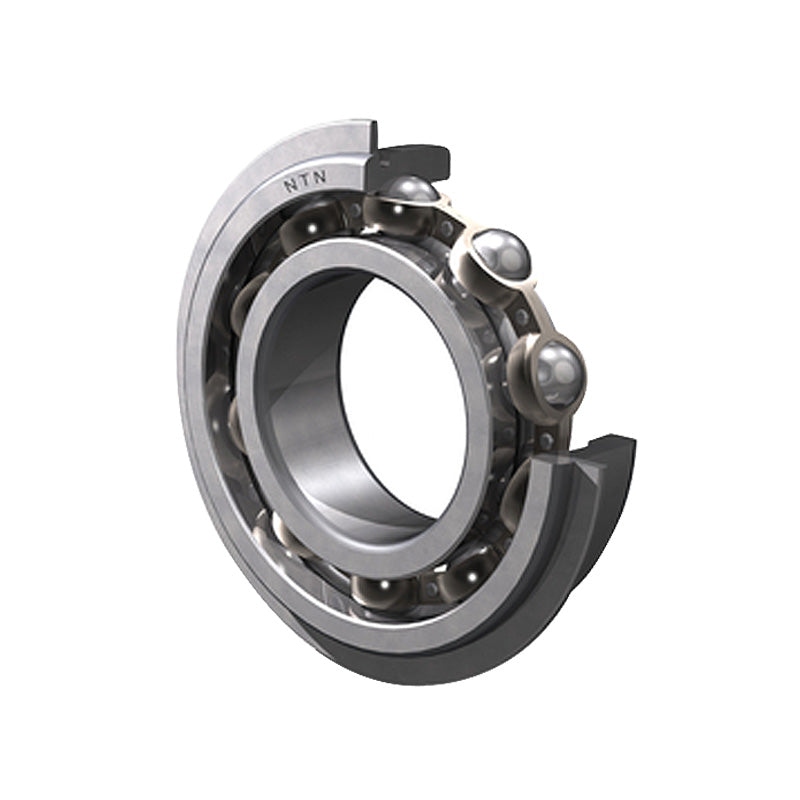

NTN 6016NR Open Type Deep Groove Ball Bearing with Snap Ring 80x125x22mm

NTN 6016NR Open Type Deep Groove Ball Bearing with Snap Ring 80x125x22mm
$225.71 ex VAT
$225.71 ex VAT
Sale Sold out

Equivalent to: 6016NRCM 9116KG 116KSG 43L16

In stock

Price Break
3+ $151.18
5+ $142.69
10+ $140.99
25+ $139.29
49+ $137.59
74+ $135.90
99+ $127.40
199+ $125.70
249+ $124.01
499+ $122.31
999+ $118.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
NTN - High Quality
Inside Diameter:
80mm
Outside Diameter:
125mm
Width:
22mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 80mm
D 125mm
B 22mm
r<sub>s</sub> min 1.1mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 53 kN
C<sub>or</sub> 40 kN
C<sub>u</sub> 2.91 kN
f<sub>0</sub> 15.6 kN
Grease 5300 rpm
Oil 6200 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 120.22mm
a Max. 2.87mm
b Min. 3.1mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 134.7mm
f Max. 2.82mm
--- Fitting Dimensions
d<sub>a</sub> Min. 86.5mm
d<sub>a</sub> Max. 91.5mm
D<sub>a</sub> Max. 118.5mm
D<sub>X</sub> (approx) 136.5mm
C<sub>Y</sub> Max. 5.3mm
C<sub>Z</sub> Min. 2.9mm
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.854 kg
