SKU: 6016NR-SKF

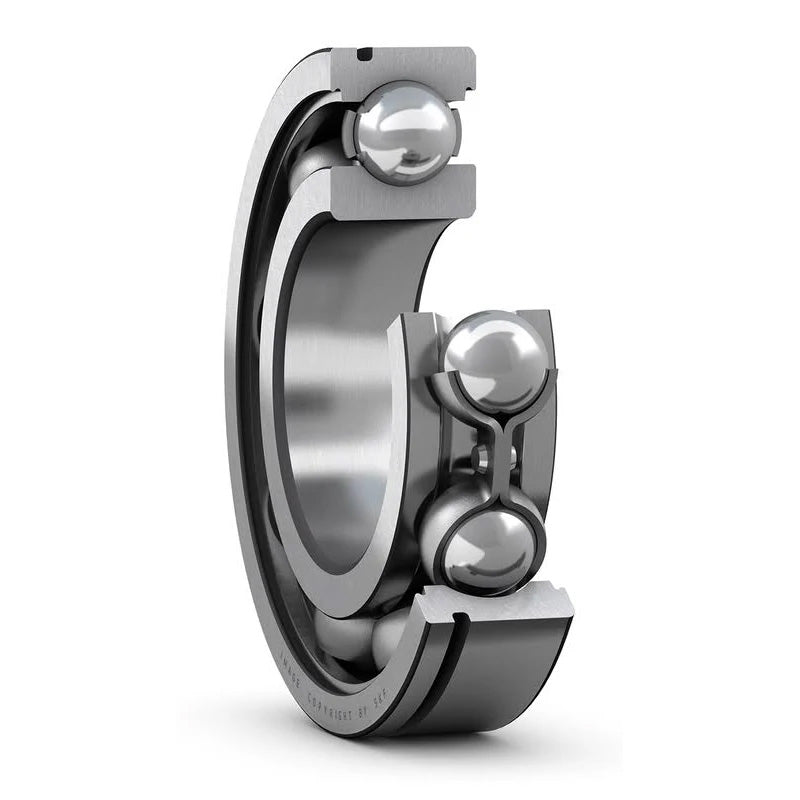

SKF 6016NR Open Type Snap Ring Deep Groove Bearing 80x125x22mm
SKF 6016NR Open Type Snap Ring Deep Groove Bearing 80x125x22mm
Regular price
$243.48
ex VAT
Regular price
Sale price
$243.48
ex VAT
In stock
Price Break
4+
$163.09
10+
$153.93
20+
$152.09
30+
$150.26
50+
$148.43
75+
$146.60
100+
$137.43
200+
$135.60
250+
$133.77
500+
$131.94
1000+
$128.27
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 125mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 80mm |
|---|---|
| D | 125mm |
| B | 22mm |
| Dynamic load C | 49.4 kN |
| Static load Co | 40 kN |
| Fatigue load limit Pu | 1.66 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 7000 rpm |
| Weight | 0.85kg |
| Snap ring | SP 125 |
| d1 | 94.4mm |
| D2 | 115mm |
| D3 | 120.22mm |
| D4 | 134.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 2.87mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da min | 86mm |
| Da max | 119mm |
| Db min | 136mm |
| ba min | 3.5mm |
| Ca max | 5.69mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 16 |
