• NTN 6017 Open Type Deep Groove Ball Bearing 85x130x22mm
  • NTN 6017 Open Type Deep Groove Ball Bearing 85x130x22mm
  • NTN 6017 Open Type Deep Groove Ball Bearing 85x130x22mm
  • NTN
1 4

SKU: 6017-NTN

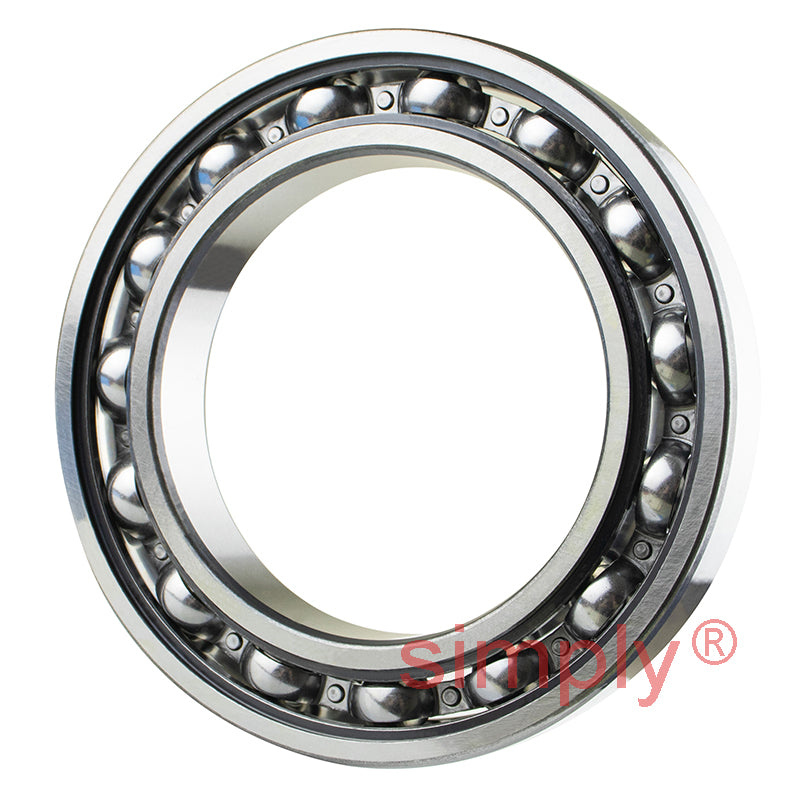

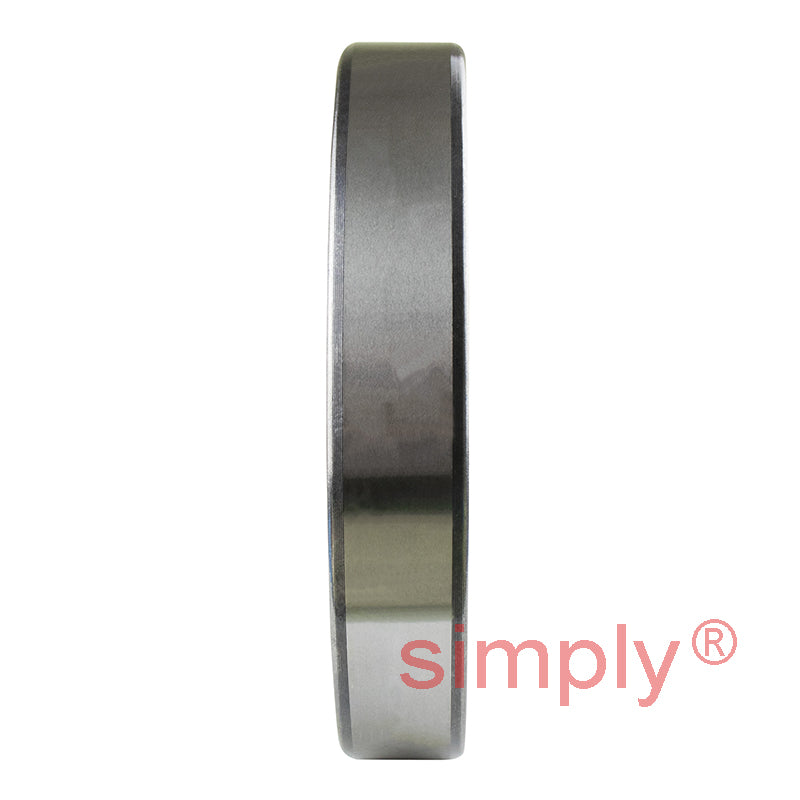

NTN 6017 Open Type Deep Groove Ball Bearing 85x130x22mm

NTN 6017 Open Type Deep Groove Ball Bearing 85x130x22mm
$93.31 ex VAT
$93.31 ex VAT
Sale Sold out

Equivalent to: 6017CM 9117K 9117 117KS 6117 3L17 EL85 ELL85

In stock

Price Break
3+ $62.50
5+ $58.99
10+ $58.29
25+ $57.59
49+ $56.89
74+ $56.18
99+ $52.67
199+ $51.97
249+ $51.27
499+ $50.57
999+ $49.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
85mm
Outside Diameter:
130mm
Width:
22mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 85mm
D 130mm
B 22mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 55 kN
C<sub>or</sub> 43 kN
C<sub>u</sub> 3 kN
f<sub>0</sub> 15.8 kN
Grease 5000 rpm
Oil 5900 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 91.5mm
D<sub>a</sub> Max. 123.5mm
r<sub>as</sub> Max. 1mm
Weight 0.89 kg
