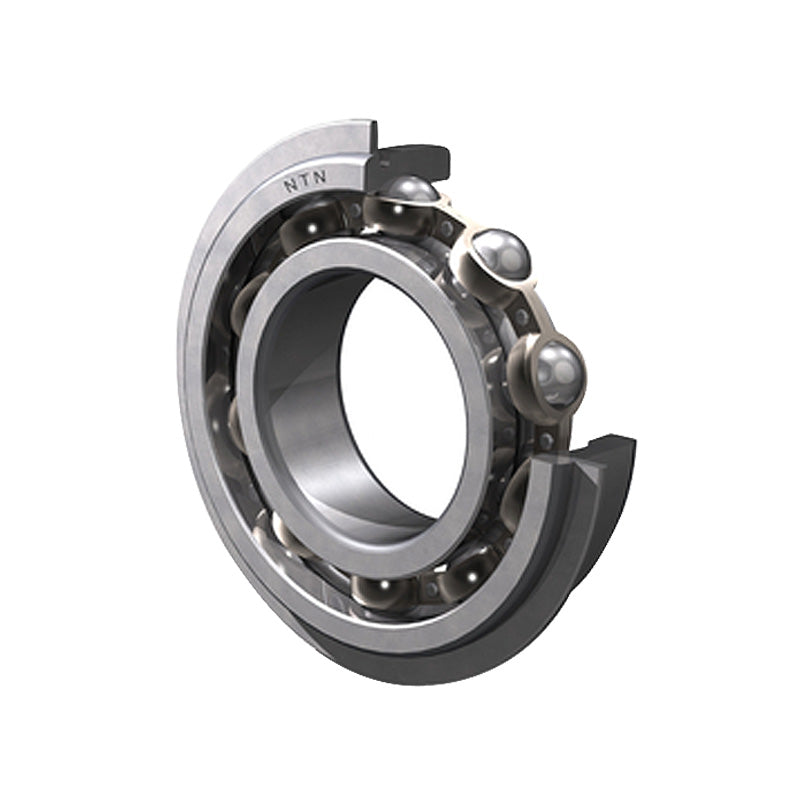

• NTN 6017NR Open Type Deep Groove Ball Bearing with Snap Ring 85x130x22mm
  • NTN
1 2

SKU: 6017NR-NTN

NTN 6017NR Open Type Deep Groove Ball Bearing with Snap Ring 85x130x22mm

NTN 6017NR Open Type Deep Groove Ball Bearing with Snap Ring 85x130x22mm
$188.42 ex VAT
$188.42 ex VAT
Sale Sold out

Equivalent to: 6017NRCM 9117KG 117KSG 43L17

In stock

Price Break
3+ $126.21
5+ $119.12
10+ $117.70
25+ $116.28
49+ $114.87
74+ $113.45
99+ $106.36
199+ $104.94
249+ $103.52
499+ $102.10
999+ $99.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
85mm
Outside Diameter:
130mm
Width:
22mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 85mm
D 130mm
B 22mm
r<sub>s</sub> min 1.1mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 55 kN
C<sub>or</sub> 43 kN
C<sub>u</sub> 3 kN
f<sub>0</sub> 15.8 kN
Grease 5000 rpm
Oil 5900 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 125.22mm
a Max. 2.87mm
b Min. 3.1mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 139.7mm
f Max. 2.82mm
--- Fitting Dimensions
d<sub>a</sub> Min. 91.5mm
d<sub>a</sub> Max. 97mm
D<sub>a</sub> Max. 123.5mm
D<sub>X</sub> (approx) 141.5mm
C<sub>Y</sub> Max. 5.3mm
C<sub>Z</sub> Min. 2.9mm
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.89 kg
