SKU: 6020-2RS1-SKF

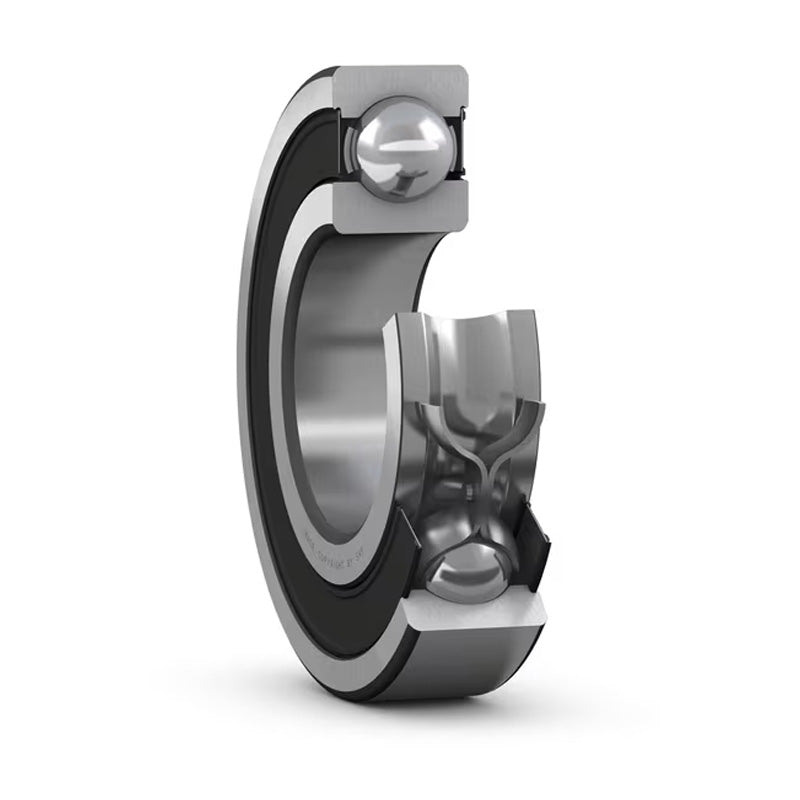

SKF 60202RS1 Rubber Sealed Deep Groove Ball Bearing 100x150x24mm
SKF 60202RS1 Rubber Sealed Deep Groove Ball Bearing 100x150x24mm
Regular price
$130.97
ex VAT
Regular price
Sale price
$130.97
ex VAT
Equivalent to: 6020NSE 6020DU 6020RS 6020RSH 6020P 6020RSR 6020LU 60202NSE 6020DDU 60202RS 60202RSH 6020PP 60202RSR 6020LLU
In stock
Price Break
4+
$87.73
10+
$82.80
20+
$81.81
30+
$80.83
50+
$79.84
75+
$78.86
100+
$73.93
200+
$72.94
250+
$71.96
500+
$70.97
1000+
$69.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 150mm |
| B | 24mm |
| Dynamic load C | 63.7 kN |
| Static load Co | 54 kN |
| Fatigue load limit Pu | 2.04 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 2600 rpm |
| Weight | 1.25 kg |
| d2 | 110mm |
| D2 | 138mm |
| r1r2 min | 1.5mm |
| da min | 107mm |
| da max | 109mm |
| Da max | 143mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 16 |
