• NTN 6020 Open Type Deep Groove Ball Bearing 100x150x24mm
  • NTN 6020 Open Type Deep Groove Ball Bearing 100x150x24mm
  • NTN 6020 Open Type Deep Groove Ball Bearing 100x150x24mm
  • NTN
1 4

SKU: 6020-NTN

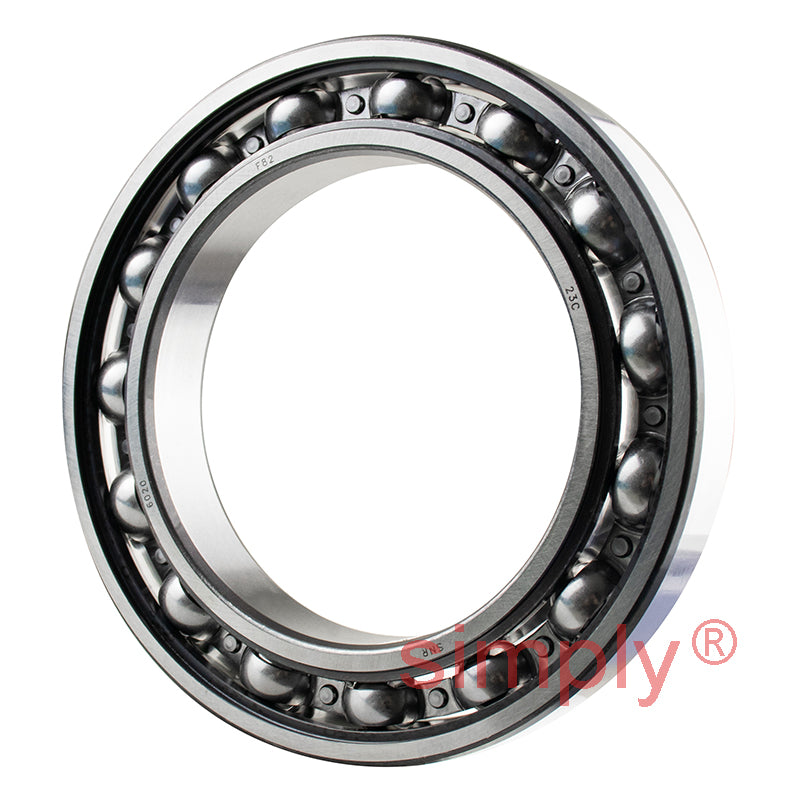

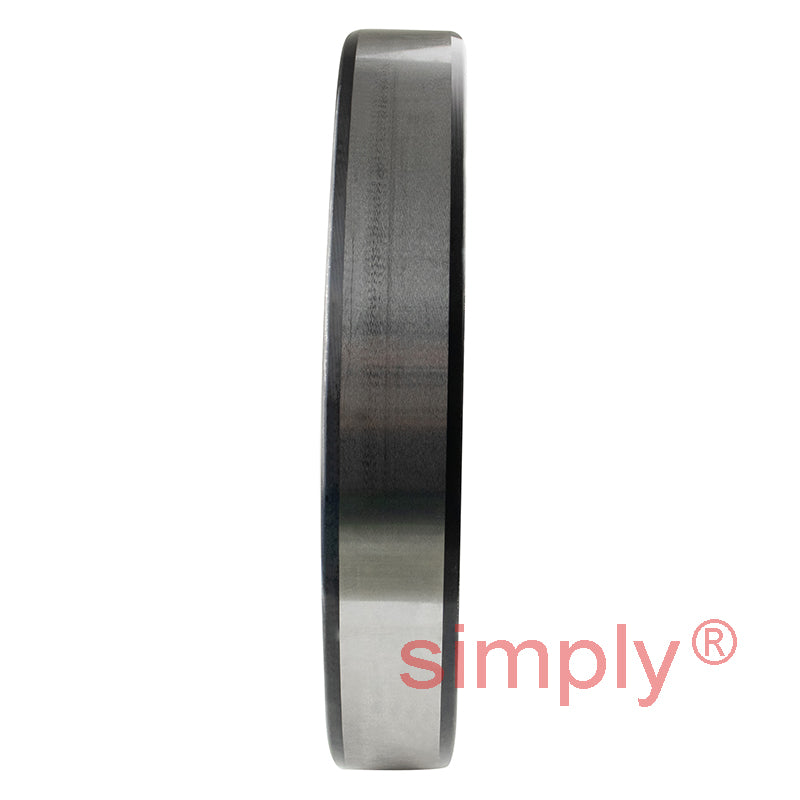

NTN 6020 Open Type Deep Groove Ball Bearing 100x150x24mm

NTN 6020 Open Type Deep Groove Ball Bearing 100x150x24mm
$141.52 ex VAT
$141.52 ex VAT
Sale Sold out

Equivalent to: 6020CM 9120K 9120 120KS 6120 3L20 EL100 ELL100

In stock

Price Break
3+ $94.79
5+ $89.47
10+ $88.40
25+ $87.34
49+ $86.27
74+ $85.21
99+ $79.88
199+ $78.82
249+ $77.75
499+ $76.69
999+ $74.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
100mm
Outside Diameter:
150mm
Width:
24mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 100mm
D 150mm
B 24mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
C<sub>r</sub> 66.5 kN
C<sub>or</sub> 54 kN
C<sub>u</sub> 3.5 kN
f<sub>0</sub> 15.9 kN
Grease 4200 rpm
Oil 5000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 108mm
D<sub>a</sub> Max. 142mm
r<sub>as</sub> Max. 1.5mm
Weight 1.15 kg
