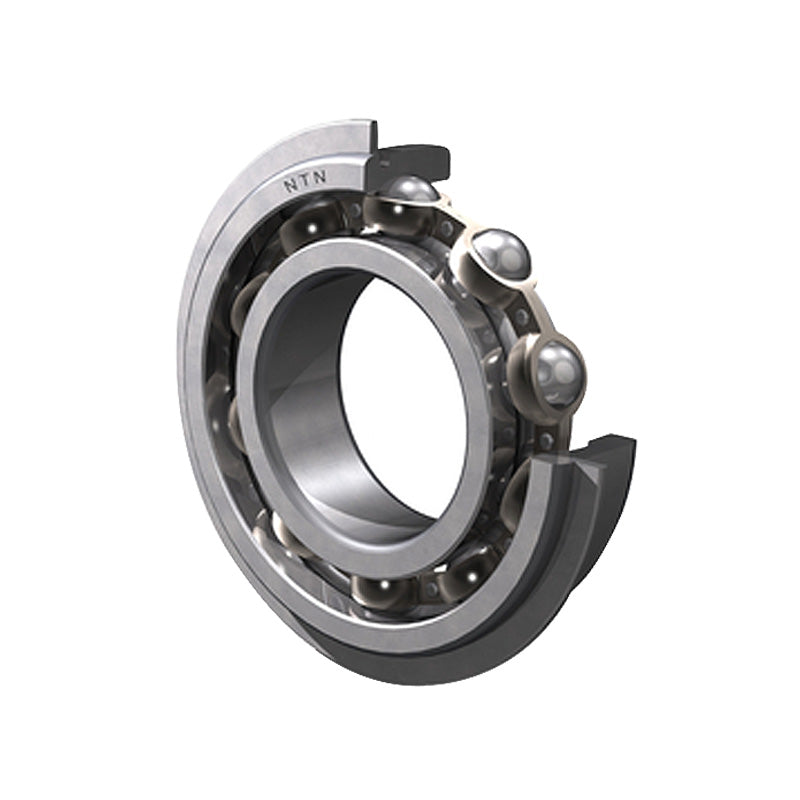

• NTN 6020NR Open Type Deep Groove Ball Bearing with Snap Ring 100x150x24mm
  • NTN
1 2

SKU: 6020NR-NTN

NTN 6020NR Open Type Deep Groove Ball Bearing with Snap Ring 100x150x24mm

NTN 6020NR Open Type Deep Groove Ball Bearing with Snap Ring 100x150x24mm
$304.99 ex VAT
$304.99 ex VAT
Sale Sold out

Equivalent to: 6020NRCM 9120KG 120KSG 43L20

In stock

Price Break
3+ $204.29
5+ $192.81
10+ $190.52
25+ $188.22
49+ $185.93
74+ $183.63
99+ $172.16
199+ $169.86
249+ $167.56
499+ $165.27
999+ $160.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
NTN - High Quality
Inside Diameter:
100mm
Outside Diameter:
150mm
Width:
24mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 100mm
D 150mm
B 24mm
r<sub>s</sub> min 1.5mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 66.5 kN
C<sub>or</sub> 54 kN
C<sub>u</sub> 3.5 kN
f<sub>0</sub> 15.9 kN
Grease 4200 rpm
Oil 5000 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 145.24mm
a Max. 3.71mm
b Min. 3.1mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 159.7mm
f Max. 2.82mm
--- Fitting Dimensions
d<sub>a</sub> Min. 108mm
d<sub>a</sub> Max. 110mm
D<sub>a</sub> Max. 142mm
D<sub>X</sub> (approx) 162mm
C<sub>Y</sub> Max. 6.1mm
C<sub>Z</sub> Min. 2.9mm
r<sub>as</sub> Max. 1.5mm
r<sub>Nas</sub> Max. 0.5mm
Weight 1.15 kg
