• NTN 6022NR Open Type Deep Groove Ball Bearing with Snap Ring 110x170x28mm
  • NTN
1 2

SKU: 6022NR-NTN

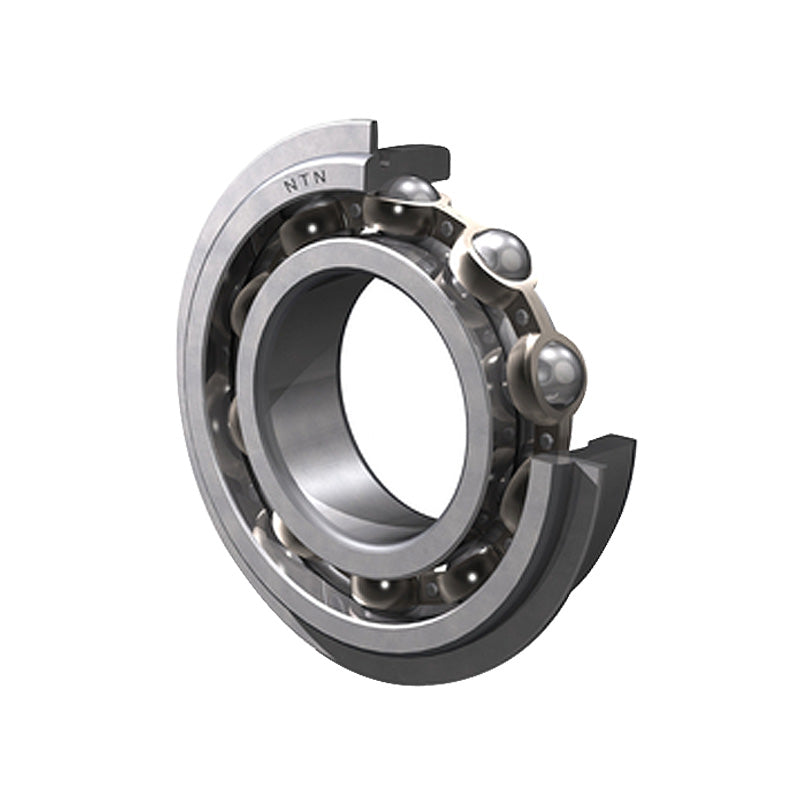

NTN 6022NR Open Type Deep Groove Ball Bearing with Snap Ring 110x170x28mm

NTN 6022NR Open Type Deep Groove Ball Bearing with Snap Ring 110x170x28mm
$393.31 ex VAT
$393.31 ex VAT
Sale Sold out

Equivalent to: 6022NRCM 9122KG 122KSG 43L22

In stock

Price Break
3+ $263.45
5+ $248.65
10+ $245.69
25+ $242.73
49+ $239.77
74+ $236.81
99+ $222.01
199+ $219.05
249+ $216.09
499+ $213.13
999+ $207.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
NTN - High Quality
Inside Diameter:
110mm
Outside Diameter:
170mm
Width:
28mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 110mm
D 170mm
B 28mm
r<sub>s</sub> min 2mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 91 kN
C<sub>or</sub> 73 kN
C<sub>u</sub> 4.55 kN
f<sub>0</sub> 15.6 kN
Grease 3800 rpm
Oil 4500 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 163.65mm
a Max. 3.71mm
b Min. 3.5mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 182.9mm
f Max. 3.1mm
--- Fitting Dimensions
d<sub>a</sub> Min. 119mm
d<sub>a</sub> Max. 126mm
D<sub>a</sub> Max. 161mm
D<sub>X</sub> (approx) 185mm
C<sub>Y</sub> Max. 6.4mm
C<sub>Z</sub> Min. 3.1mm
r<sub>as</sub> Max. 2mm
r<sub>Nas</sub> Max. 0.5mm
Weight 1.96 kg
