SKU: 6024-2Z-SKF

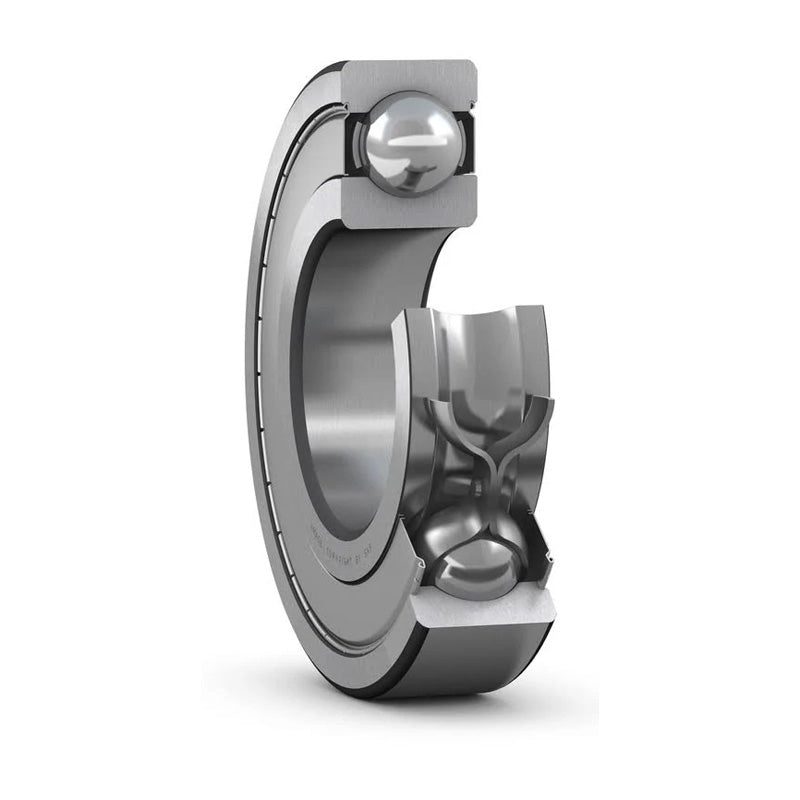

SKF 60242Z Metal Shielded Deep Groove Ball Bearing 120x180x28mm
Equivalent to: 6024ZZE 6024ZZ 6024.2Z 6024KDD 6024DD 6024FF 60242ZR 6024ZZ 60242Z 6024ZZ
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 120mm |
|---|---|
| D | 180mm |
| B | 28mm |
| Dynamic load C | 88.4 kN |
| Static load Co | 80 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 3800 rpm |
| Weight | 2.05 kg |
| d1 | 139mm |
| d2 | 0mm |
| D2 | 165mm |
| r1r2 min | 2mm |
| da min | 129mm |
| da max | 0mm |
| Da max | 171mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 16 |
