SKU: 6024-2Z/VA208-SKF

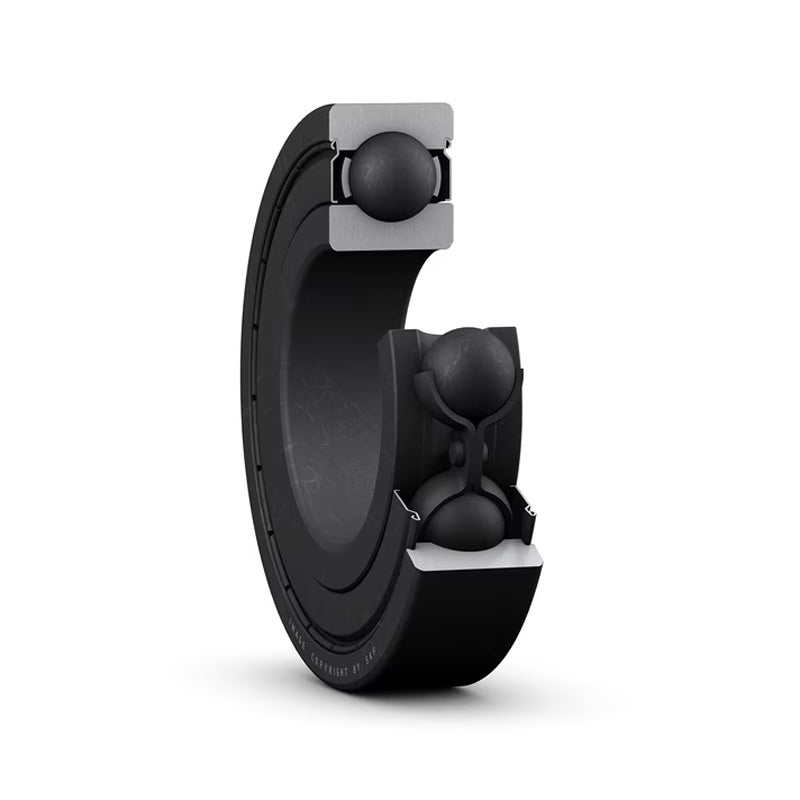

SKF 60242ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 120x180x28mm

Name: SKF 60242ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 120x180x28mm
Brand: SKF
SKU: 6024-2Z/VA208-SKF
Price: 1061.51 USD
Availability: InStock

$1,061.51 ex VAT

Sale Sold out

In stock

Price Break

10+ $711.03

19+ $671.08

29+ $663.10

39+ $655.11

49+ $647.12

74+ $639.13

99+ $599.18

199+ $591.19

249+ $583.20

499+ $575.22

999+ $559.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF VA208 Series High Temperature Bearings: Supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING
Benefits: High temperature resilience, low maintenance

Brand / Quality:: SKF - High Quality
Inside Diameter:: 120mm
Outside Diameter:: 180mm
Width:: 28mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard

Technical

d	120mm
D	180mm
B	28mm
d1	139mm
D2	166mm
r1r2	2mm
Basic load rating Co	80 kN
Weight	1.9 kg
Max operating temp	+250 deg C
Min operating temp	-40 deg C
Recommended max speed	100 rpm
