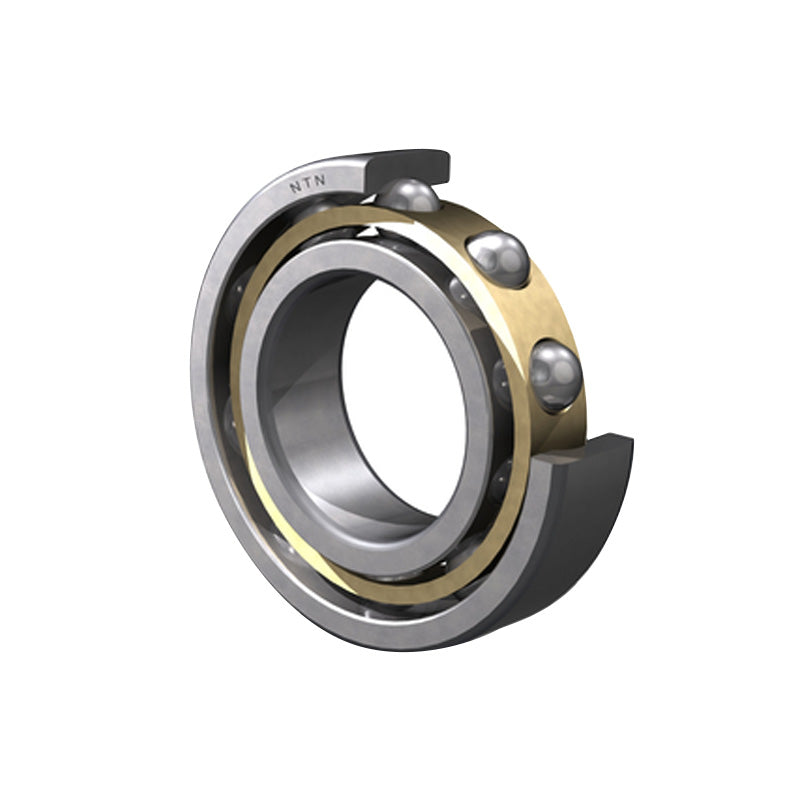

• NTN 6024L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 120x180x28mm
1 1

SKU: 6024L1C3-NTN

NTN 6024L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 120x180x28mm

NTN 6024L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 120x180x28mm
$204.47 ex VAT
$204.47 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
120mm
Outside Diameter:
180mm
Width:
28mm
Seals / Shields:
None
Clearance:
C3
Technical
--- Bearing dimensions
d 120mm
D 180mm
B 28mm
r<sub>s</sub> min 2mm
--- Loads angles and speeds
C<sub>r</sub> 94 Kn
C<sub>or</sub> 79.5 kN
C<sub>u</sub> 4.65 kN
f<sub>0</sub> 15.9 kN
Grease 3500 rpm
Oil 4100 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 129mm
D<sub>a</sub> Max. 171mm
r<sub>as</sub> Max. 2mm
Weight 2.07 kg
