SKU: 6028-2Z/C3-SKF

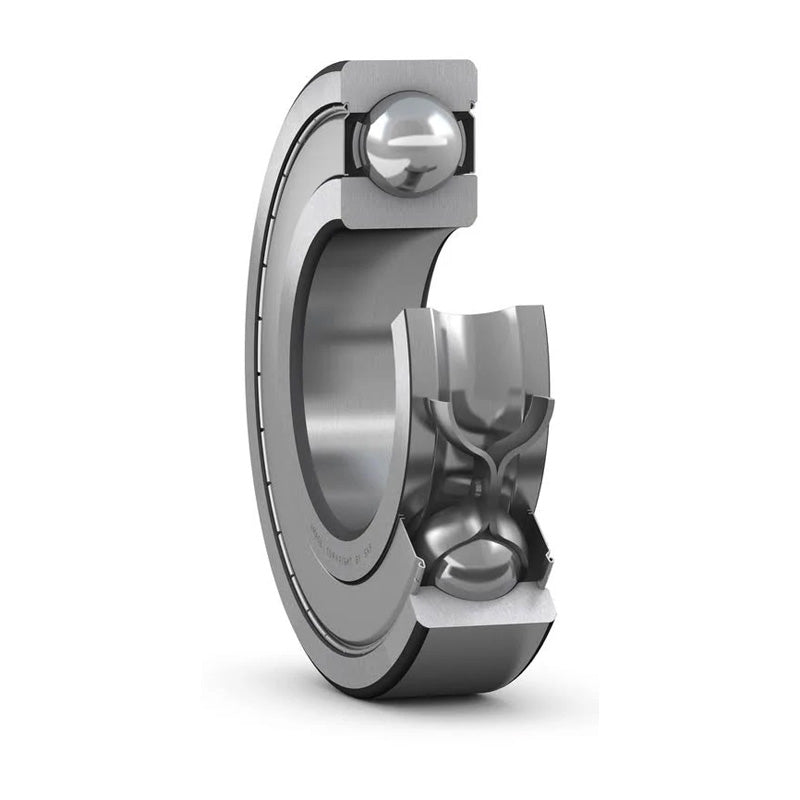

SKF 60282ZC3 Metal Shielded Deep Groove Ball Bearing 140x210x33mm
Equivalent to: 6028ZZEC3 6028ZZC3 6028.2ZC3 6028KDDC3 6028DDC3 60282ZRC3 6028FFC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 210mm
- Width:
- 33mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 140mm |
|---|---|
| D | 210mm |
| B | 33mm |
| Dynamic load C | 111 kN |
| Static load Co | 108 kN |
| Fatigue load limit Pu | 3.45 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 3200 rpm |
| Weight | 3.35 kg |
| d1 | 163mm |
| d2 | 0mm |
| D2 | 192mm |
| r1r2 min | 2mm |
| da min | 149mm |
| da max | 0mm |
| Da max | 201mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 16 |
