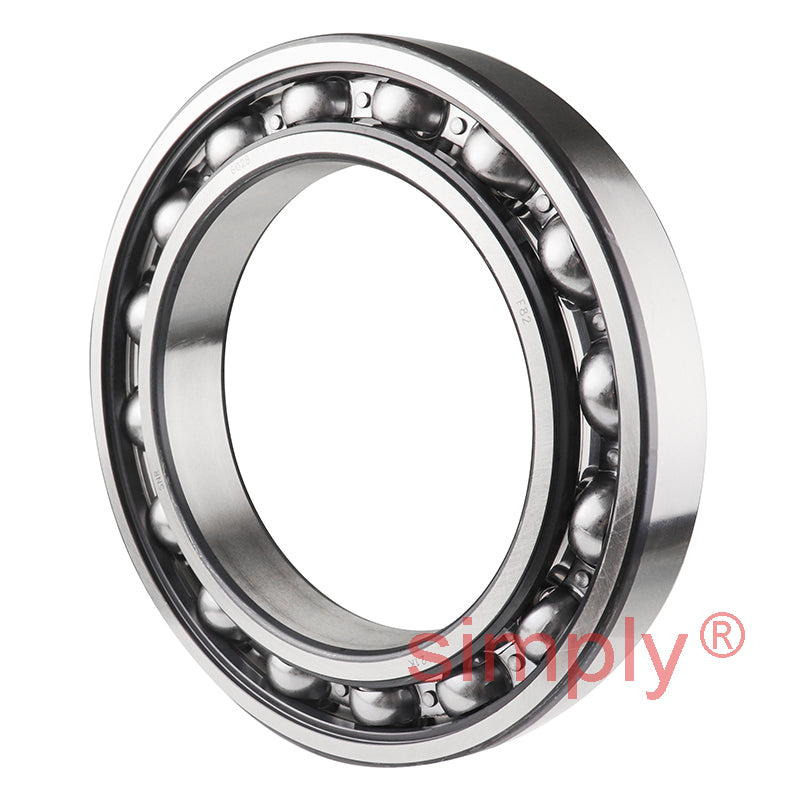

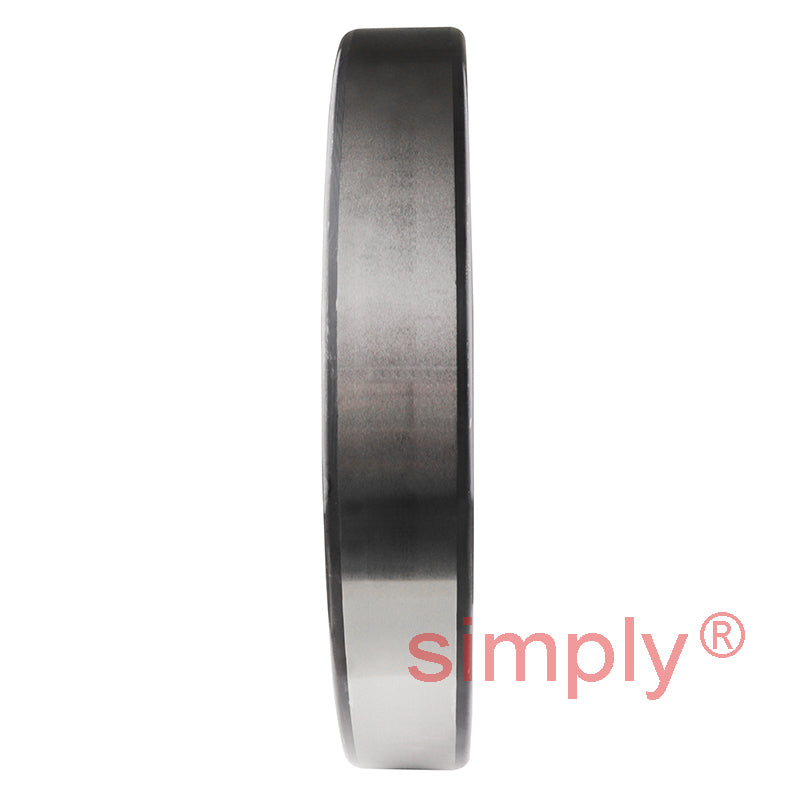

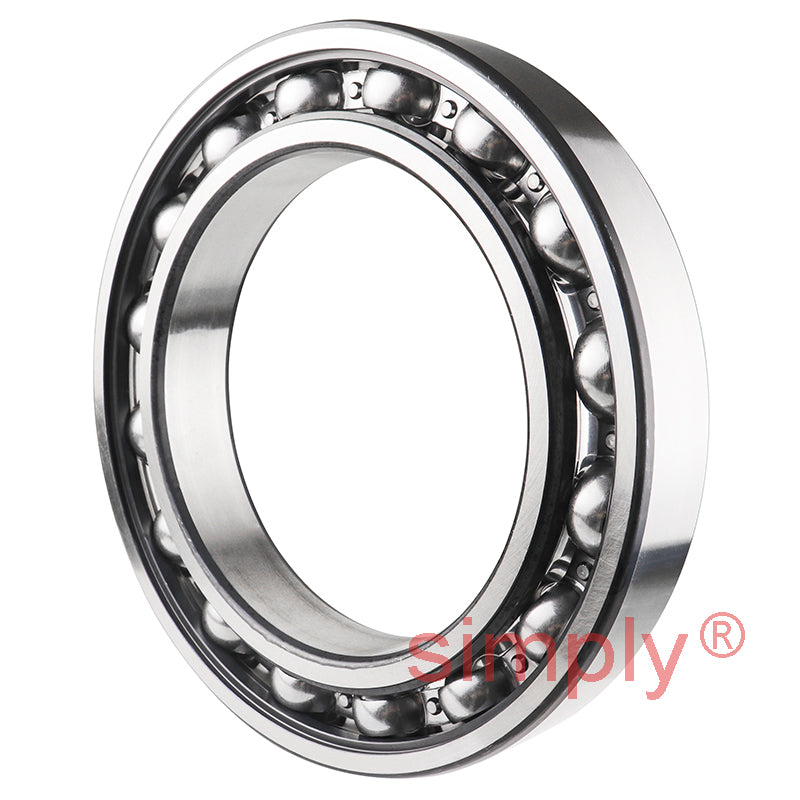

• NTN 6028 Open Type Deep Groove Ball Bearing 140x210x33mm
  • NTN 6028 Open Type Deep Groove Ball Bearing 140x210x33mm
  • NTN 6028 Open Type Deep Groove Ball Bearing 140x210x33mm
  • NTN
1 4

SKU: 6028-NTN

NTN 6028 Open Type Deep Groove Ball Bearing 140x210x33mm

NTN 6028 Open Type Deep Groove Ball Bearing 140x210x33mm
$374.05 ex VAT
$374.05 ex VAT
Sale Sold out

Equivalent to: 6028CM 9128K 9128 128KS 6128 3L28 EL140 ELL140

In stock

Price Break
3+ $250.55
5+ $236.48
10+ $233.66
25+ $230.85
49+ $228.03
74+ $225.22
99+ $211.14
199+ $208.32
249+ $205.51
499+ $202.69
999+ $197.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
140mm
Outside Diameter:
210mm
Width:
33mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 140mm
D 210mm
B 33mm
r<sub>s</sub> min 2mm
--- Loads angles and speeds
C<sub>r</sub> 122 kN
C<sub>or</sub> 109 kN
C<sub>u</sub> 5.85 kN
f<sub>0</sub> 15.9 kN
Grease 3000 rpm
Oil 3500 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 149mm
D<sub>a</sub> Max. 201mm
r<sub>as</sub> Max. 2mm
Weight 3.35 kg
