SKU: 6028-SKF

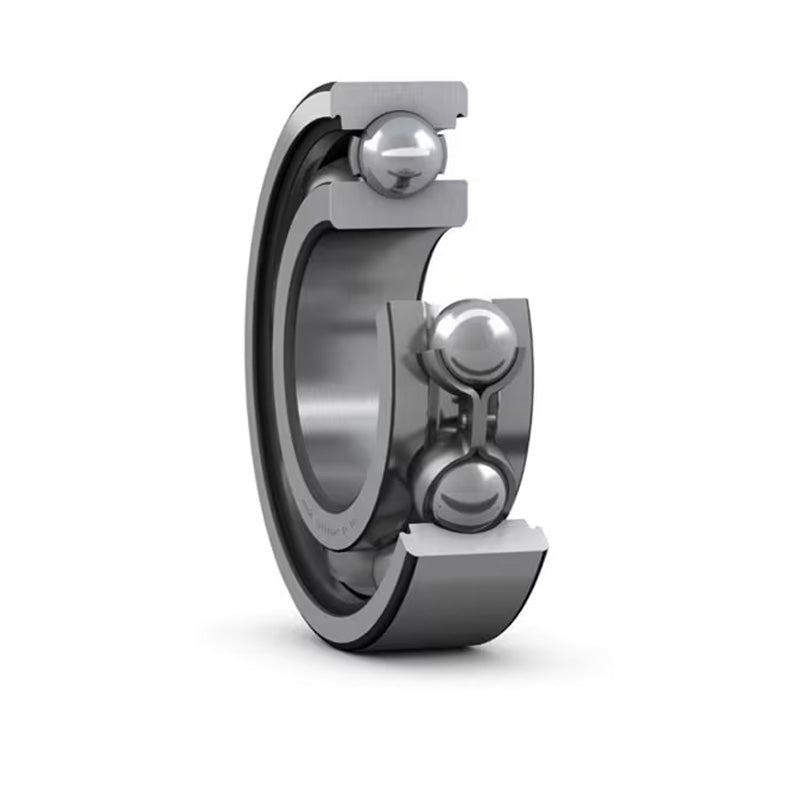

SKF 6028 Open Deep Groove Ball Bearing 140x210x33mm
SKF 6028 Open Deep Groove Ball Bearing 140x210x33mm
Regular price
$403.51
ex VAT
Regular price
Sale price
$403.51
ex VAT
Equivalent to: 9128K 9128 128KS 6128 3L28 EL140 ELL140
In stock
Price Break
4+
$270.28
10+
$255.10
20+
$252.06
30+
$249.03
50+
$245.99
75+
$242.95
100+
$227.77
200+
$224.73
250+
$221.69
500+
$218.66
1000+
$212.58
Quantity
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 210mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 140mm |
|---|---|
| D | 210mm |
| B | 33mm |
| Dynamic load | 111 kN |
| Static load | 108 kN |
| Fatigue load limit Pu | 3.45 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 4000 rpm |
| Weight | 3.35 kg |
| d1 | 163mm |
| D1 | 187mm |
| D2 | 192mm |
| r1r2 min | 2mm |
| da min | 149mm |
| Da max | 201mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 16 |
