SKU: 603-MB

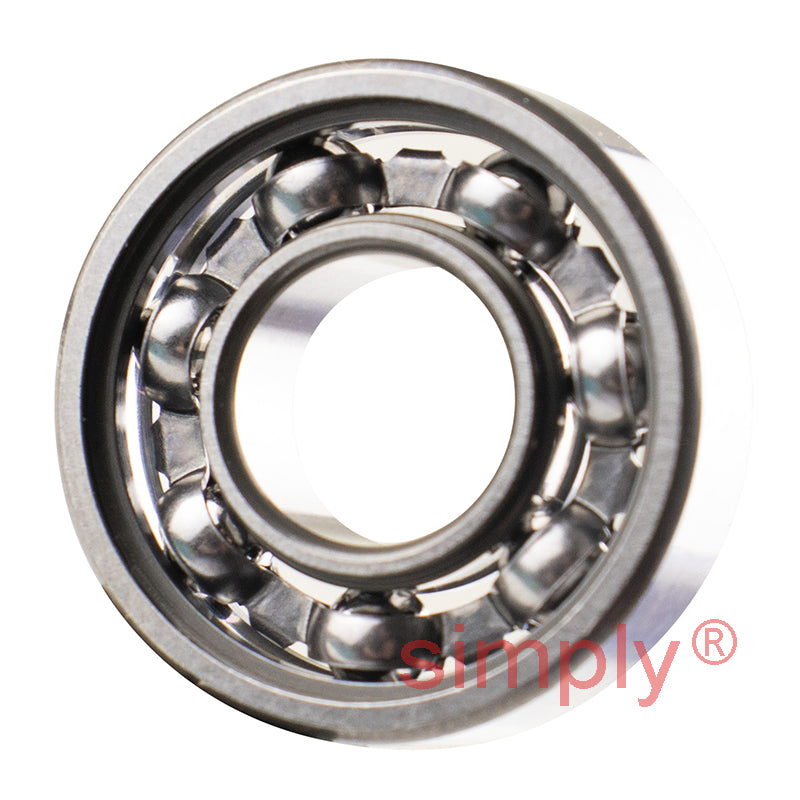

Major Branded 603 Open Type Deep Groove Ball Bearing 3x9x3mm
Major Branded 603 Open Type Deep Groove Ball Bearing 3x9x3mm
Regular price
$4.56
ex VAT
Regular price
Sale price
$4.56
ex VAT
In stock
Price Break
10+
$3.06
19+
$2.88
29+
$2.85
39+
$2.82
49+
$2.78
74+
$2.75
99+
$2.58
199+
$2.54
249+
$2.51
499+
$2.47
999+
$2.40
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 3mm
- Outside Diameter:
- 9mm
- Width:
- 3mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 3mm |
|---|---|
| D | 9mm |
| B | 3mm |
| r min | 0.15mm |
| Dynamic load C | 0.5684 kN |
| Static load Co | 0.1862 kN |
| Max speed | 65000 rpm |
| Mass | 0.01 kg |
