SKU: 607-2RS-CDX

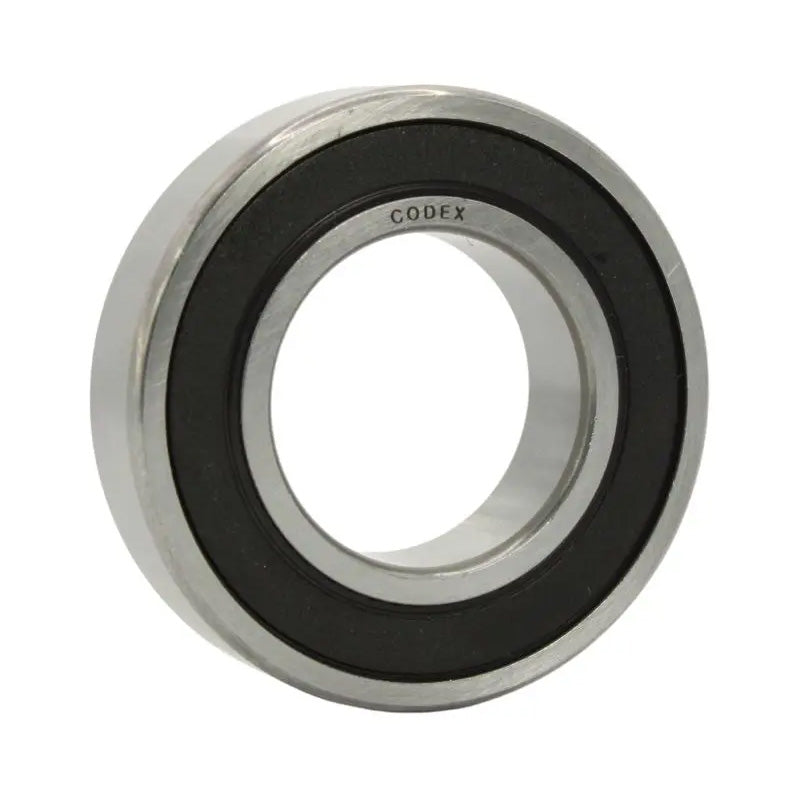

Codex 6072RS Rubber Sealed Deep Groove Ball Bearing 7x19x6mm
Codex 6072RS Rubber Sealed Deep Groove Ball Bearing 7x19x6mm
Regular price
$4.64
ex VAT
Regular price
Sale price
$4.64
ex VAT
Equivalent to: 6072RS 6072RSH 6072RS1 6072RSR 6072RSL 607LFS 607EE 607DU 607LLU 607PP EL72RS
In stock
Price Break
4+
$3.10
10+
$2.93
20+
$2.90
30+
$2.86
50+
$2.83
75+
$2.79
100+
$2.62
200+
$2.58
250+
$2.55
500+
$2.51
1000+
$2.44
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 19mm
- Width:
- 6mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 7mm |
|---|---|
| D | 19mm |
| B | 6mm |
| Dynamic load C | 2.34 kN |
| Static load Co | 0.95 kN |
| Fatigue load limit Pu | 0.04 |
| Reference speed | 85000 rpm |
| Limiting speed | 24000 rpm |
| Weight | 0.015 kg |
| d1 | -mm |
| D2 | 16.5mm |
| r1r2 | 0.3mm |
| da min | 9mm |
| Da max | 17mm |
| ra max | 0.3mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 13 |
