SKU: 609-2Z-SKF

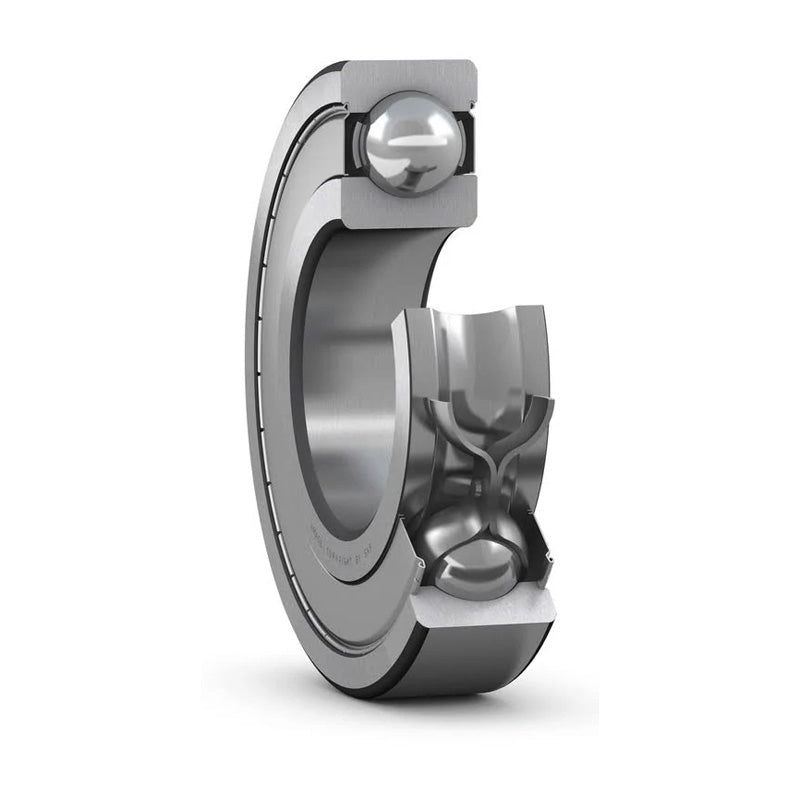

SKF 6092Z Metal Shielded Deep Groove Ball Bearing 9x24x7mm
Equivalent to: 609ZZE 609ZZ 609.2Z 609KDD 609DD 609FF 6092ZR 609.ZZ 6092Z 609ZZ
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 24mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 9mm |
|---|---|
| D | 24mm |
| B | 7mm |
| Dynamic load C | 3.9 kN |
| Static load Co | 1.66 kN |
| Fatigue load limit Pu | 0.071 kN |
| Reference speed | 70000 rpm |
| Limiting speed | 34000 rpm |
| Weight | 0.014 kg |
| d1 | 14.4mm |
| d2 | 0mm |
| D2 | 21.2mm |
| r1r2 min | 0.3mm |
| da min | 11mm |
| da max | 0mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 13 |
