SKU: 618/4-MB

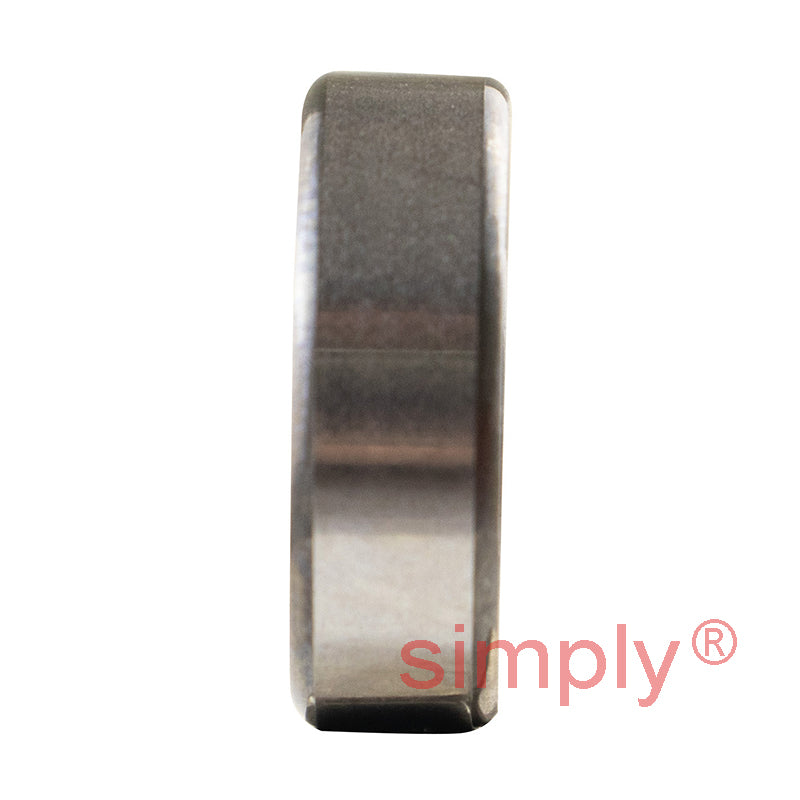

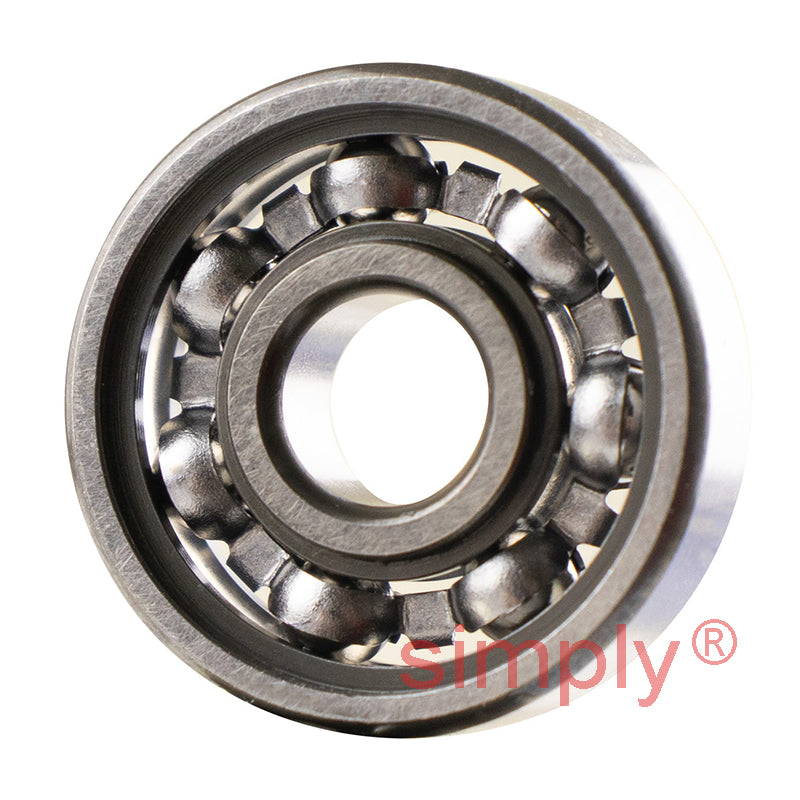

Major Branded 618/4 Open Deep Groove Ball Bearing 4x9x2.5mm

Major Branded 618/4 Open Deep Groove Ball Bearing 4x9x2.5mm
$9.29 ex VAT
$9.29 ex VAT
Sale Sold out

Equivalent to: 684

In stock

Price Break
10+ $6.22
19+ $5.87
29+ $5.80
39+ $5.73
49+ $5.66
74+ $5.59
99+ $5.24
199+ $5.17
249+ $5.10
499+ $5.03
999+ $4.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
4mm
Outside Diameter:
9mm
Width:
2.5mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 4mm
D 9mm
B 2.5mm
Dynamic load C 0.54 kN
Static load Co 0.18 kN
Fatigue load limit Pu 0.007 kN
Reference speed 140000 rpm
Limiting speed 85000 rpm
Mass 0.0007 kg
d1 5.2mm
D1 7.5mm
r1r2 min 0.1mm
da min 4.6mm
Da max 8.4mm
ra max 0.1mm
Calc factor Kr 0.015
Calc factor 10
