SKU: 618/7-MB

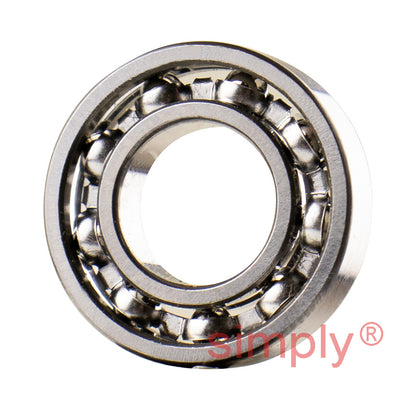

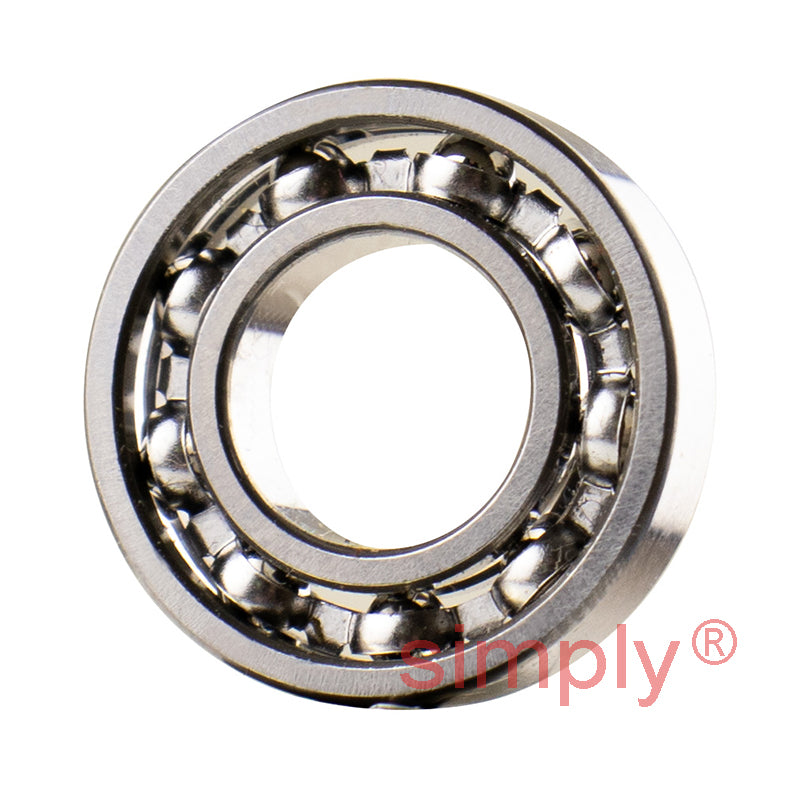

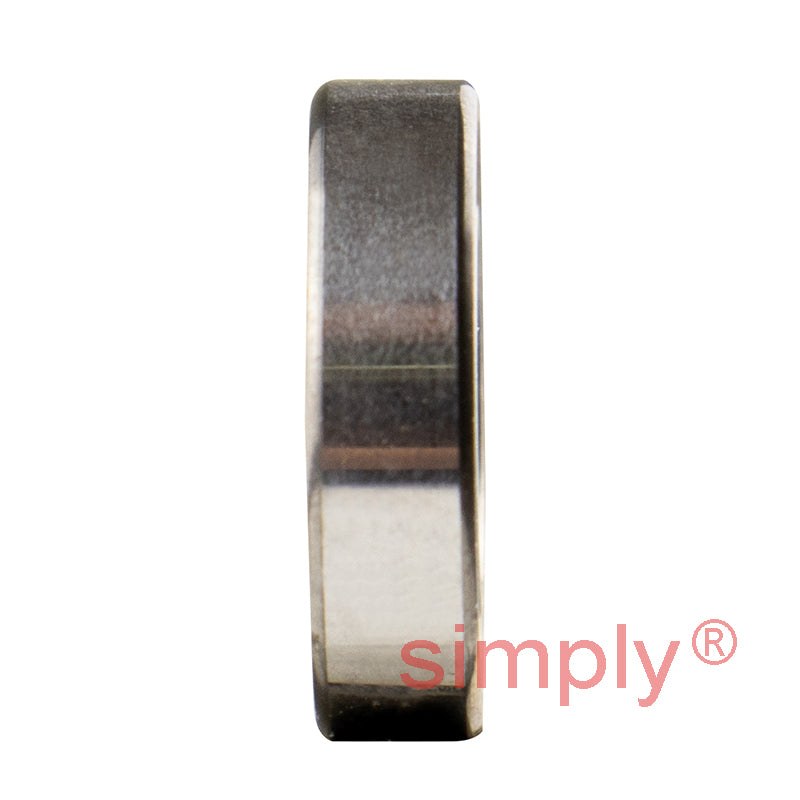

Major Branded 618/7 Open Deep Groove Ball Bearing 7x14x3.5mm
Major Branded 618/7 Open Deep Groove Ball Bearing 7x14x3.5mm
Regular price
$9.14
ex VAT
Regular price
Sale price
$9.14
ex VAT
Equivalent to: 687
In stock
Price Break
10+
$6.12
19+
$5.78
29+
$5.71
39+
$5.64
49+
$5.57
74+
$5.50
99+
$5.16
199+
$5.09
249+
$5.02
499+
$4.95
999+
$4.81
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 14mm
- Width:
- 3.5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 7mm |
|---|---|
| D | 14mm |
| B | 3.5mm |
| Dynamic load C | 0.956 kN |
| Static load Co | 0.4 kN |
| Fatigue load limit Pu | 0.017 kN |
| Reference speed | 100000 rpm |
| Limiting speed | 63000 rpm |
| Mass | 0.0022 kg |
| d1 | 8.9mm |
| D1 | 12.2mm |
| r1r2 min | 0.15mm |
| da min | 7.8mm |
| Da max | 13.2mm |
| ra max | 0.1mm |
| Calc factor Kr | 0.015 |
| Calc factor | 11 |
